P25-Flying LED Curtain, Drone Light Show LED Mesh Screen

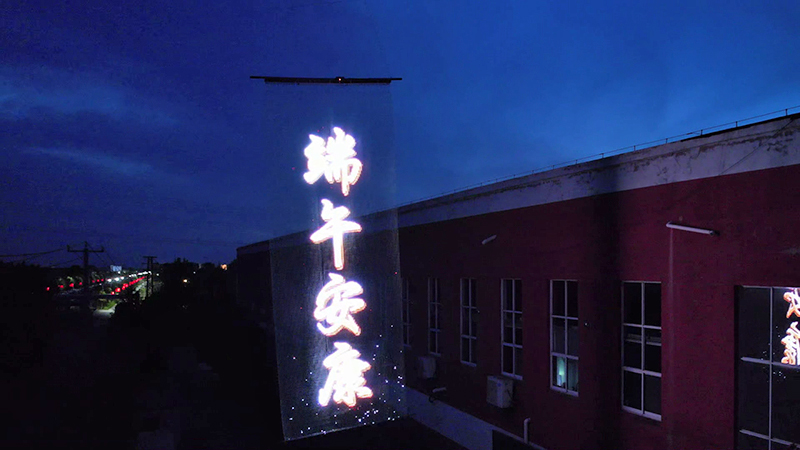

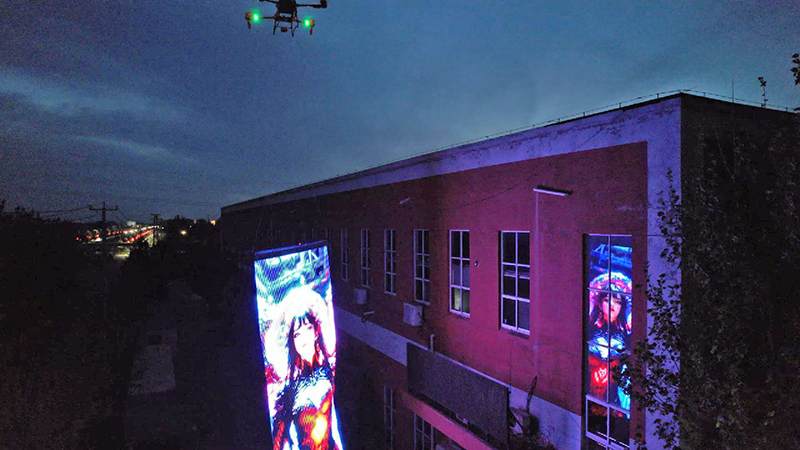

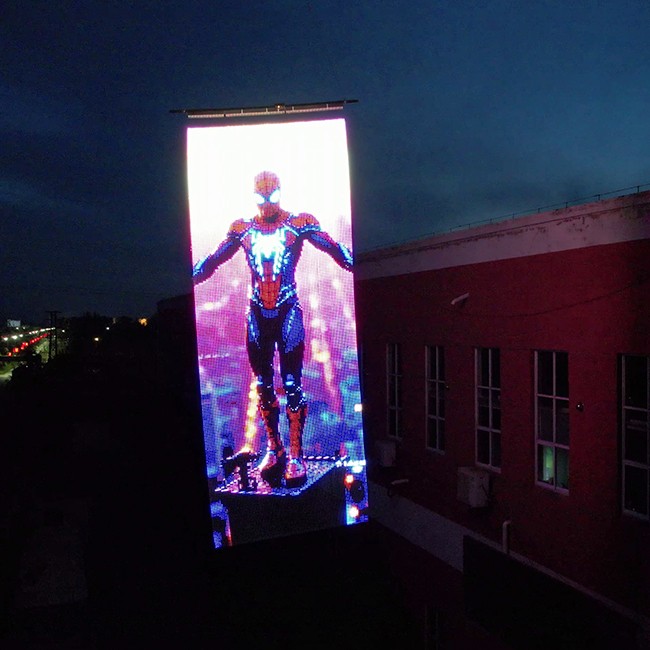

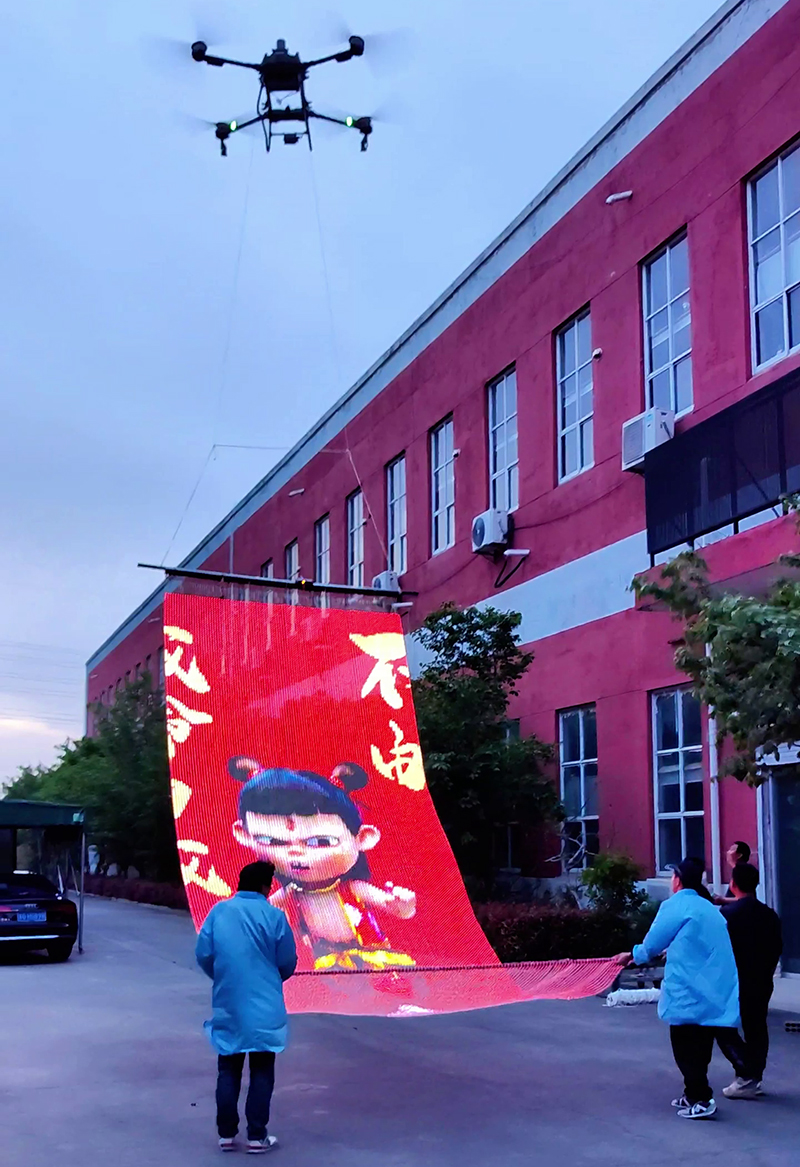

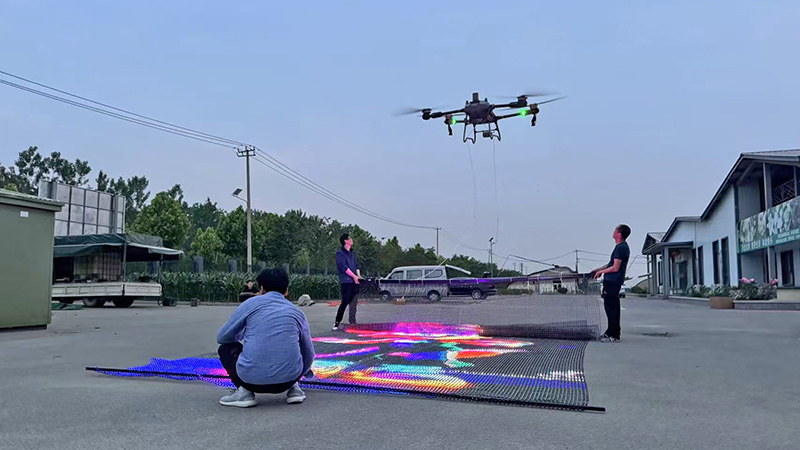

Our Flying Drone LED Light Show Mesh Screen brings sky-high storytelling to life with a massive 2.6×6.8 meter display powered by 28,288 vibrant RGB LEDs. Designed for maximum visual impact, this high-resolution LED mesh is supported by 6 powerful 12 V 10A lithium batteries, delivering up to 60 minutes of dazzling aerial performance on a full charge. Ideal for drone light shows, outdoor events, brand promotions, and entertainment venues, this advanced display system merges drone mobility with immersive LED visuals for unforgettable sky-based experiences.
Dear All,
Thank you for your inquiry regarding the Drone LED Mesh Display.
To better assist you, may I ask a few quick questions:
Do you already have a drone?
If yes, please share the model and maximum loading capacity (in kg).
If no, we can recommend suitable drone models (such as DJI Agras T40 or T60), which support 20–50kg payloads.

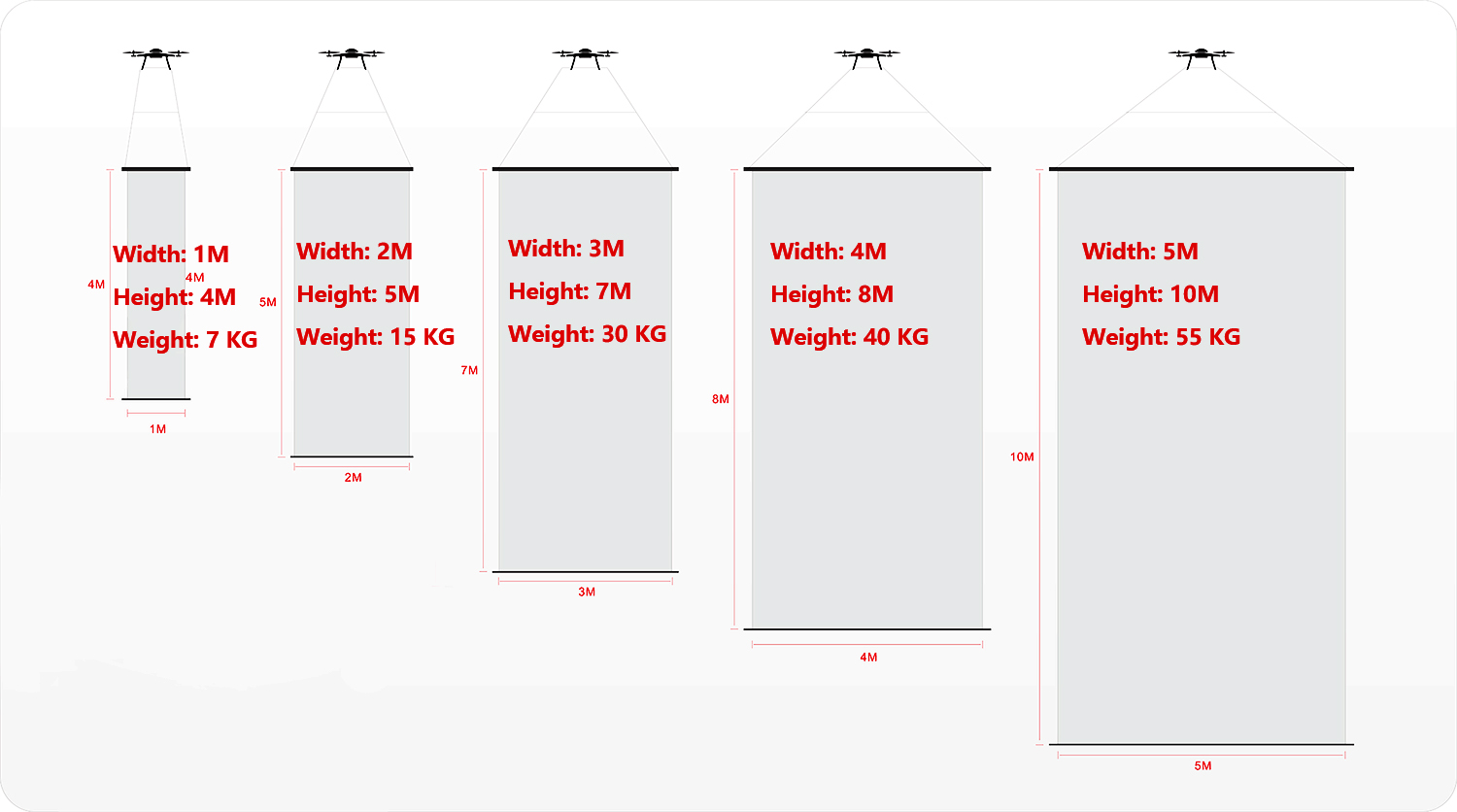

What screen size and resolution are you planning to use?
For example: 4×8 meters with 25mm pixel pitch.
Application scenario:
Is it for a fixed-position show, flying screen performance, or demo/proposal?
Our LED mesh screen is lightweight and modular, ideal for drone use. We will provide:
Customized screen size
Matching controller and power solution
Technical support for balancing and mounting

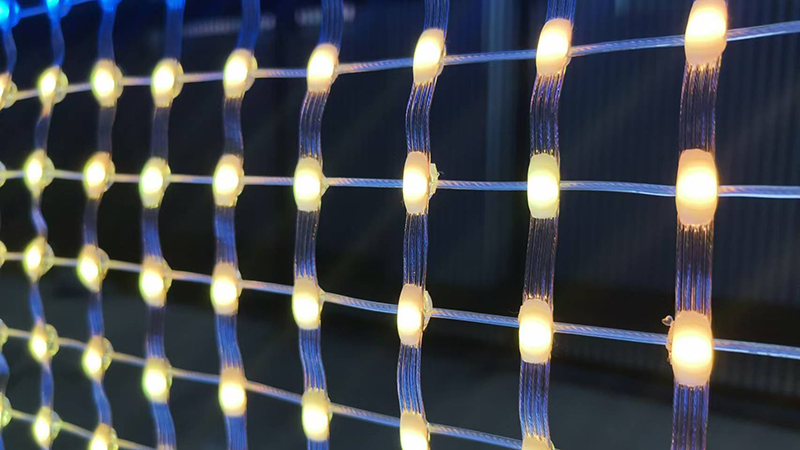

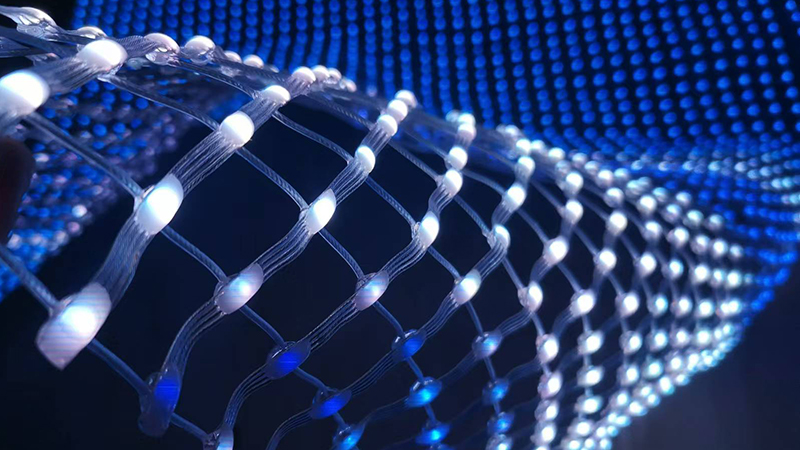

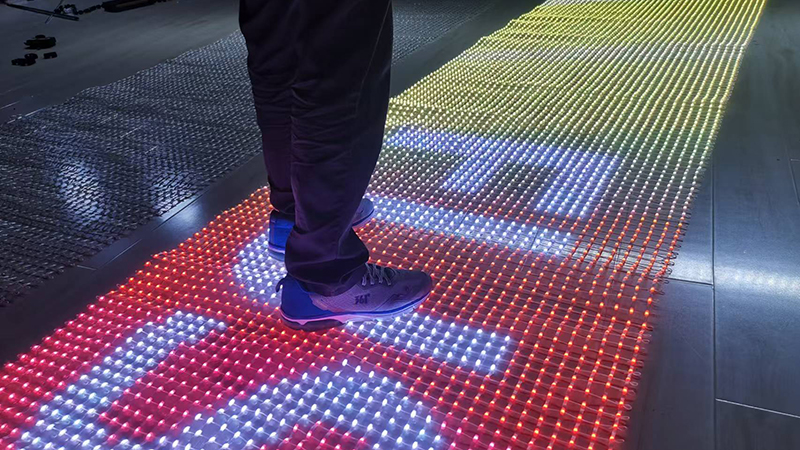

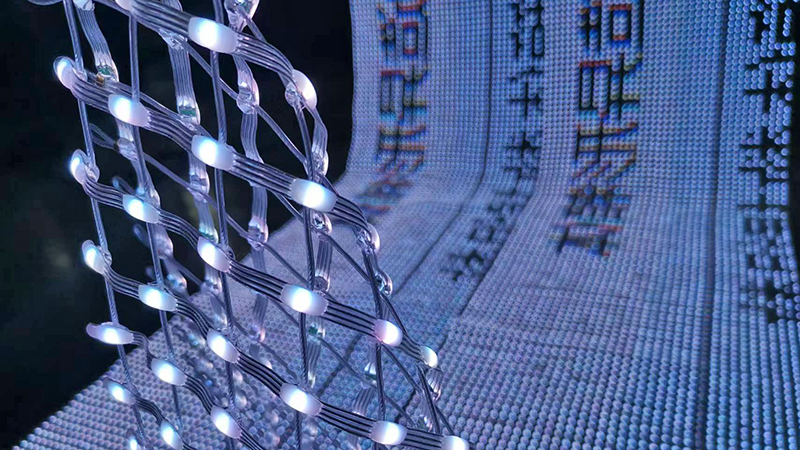

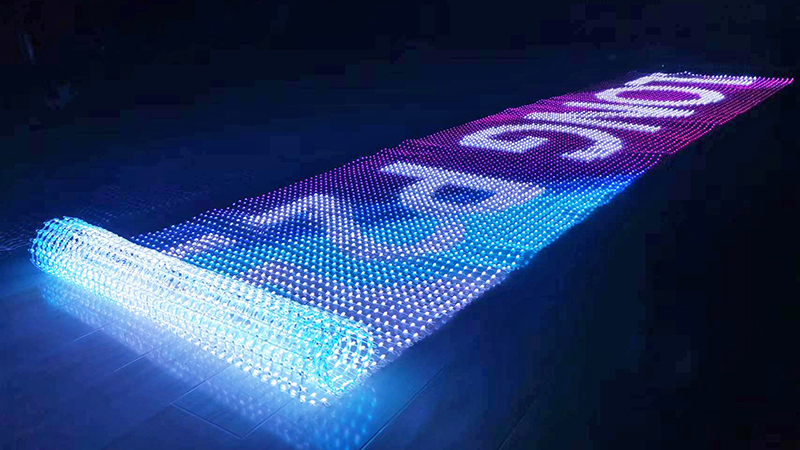

8 bit color Resolution,3840 hz, 2000 nits Brightness,ideal for building facade lighting, nightclub ceiling decoration, shop front elevation display,video wall, party and event curtain light. It's designed with a flexible, fabric-like structure, allowing them to bend in multiple directions and wrap around uneven surfaces, such as rocks or trees.
Technical Specification
| LED Magic Mesh Fabric | ||||
| Item | P20LMP | P25LMP | P50LMP | P100LMP |
| Pixel Pitch | 20mm | 25mm | 50mm | 100mm |
| Pixel Type | SMD3550×1 | |||
| Pixel Density | 2500 dot/㎡ | 1600 dot/㎡ | 400 dot/㎡ | 100 dot/㎡ |
| Drive IC Characteristics | Breakpoint Resume | |||
| Grayscale Level | 8bit (256) | |||
| Screen Brightness | 5000 cd/㎡ | 3600 cd/㎡ | 1000 cd/㎡ | 300 cd/㎡ |
| Contrast Ratio | 1:1000 | 1:1000 | 1:600 | 1:200 |
| Horizontal Viewing Angle | 360° | |||
| Vertical Viewing Angle | 360° | |||
| Best Viewing Distance | 20-3000 m | 25-3000 m | 50-3000 m | 100-3000 m |
| Maximum Power Consumption | 320 W/㎡ | 200 W/㎡ | 50 W/㎡ | 15 W/㎡ |
| Average Power Consumption | 170 W/㎡ | 120 W/㎡ | 35 W/㎡ | 10 W/㎡ |
| Product Weight | 1.5 kg/㎡ | 0.8 kg/㎡ | 0.4 kg/㎡ | 0.16 kg/㎡ |
| Refresh Rate | 3840 Hz | |||
| Power Supply Voltage | DC12V | |||
| Drive Current Mode | Constant current / Remote V2.0 | |||
| Life Span | ≥50000 H | |||
| Transparency | 50% | 70% | 80% | 95% |
| Ingress Protection | IP65 | |||
| Product Material | UV-resistant PC | |||
Control by Novastar
How do you control the drone flying LED display?
The LED screen and the drone operate using separate control systems:
-
The drone is controlled by its own dedicated flight controller (just like a standard remote-control drone).
-
The LED screen is powered by an onboard lithium battery and controlled independently via Novastar system, typically using a TB1 multimedia player.
-
Content is uploaded wirelessly to the screen via Wi-Fi using the ViPlex Express app or USB.
So, while the drone handles the flight, the screen plays pre-uploaded content independently during the show.
Let me know if you'd like a full wiring diagram or a demonstration video.

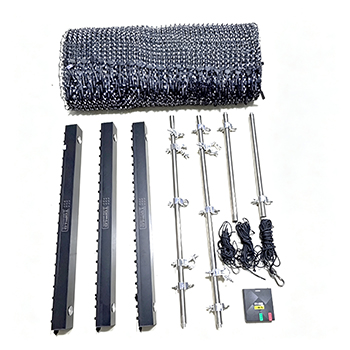

12 Volt 14/18AH Lithium Battery +40 /64 Universe Sub-controller(Prebuild Novastar Receiving Card)
