Digital Water Curtain Controller

Product Item： Sub-controller HX-30A
Voltage:DC5-24V
Support DMX and SPI protocol
Motion sensor in option
Light control,pls consult us

Product description： Digital Water Curtain Controller, Water Swing,Fountain Controller & Software, smartphone or tablet Wifi-App Control, DWC Solenoid valves controller, Indoor and Outdoor Progam to display graphics, patterns and texts. A spray ring of a certain length,

Description

Digital Water Curtain Fountain Controller & Water Display

Transforming Spaces with the Digital Water Curtain

The Digital Water Curtain (DWC) serves as a dynamic, computer-controlled display, cascading water with precision to form graphics, patterns, and text. Controlled by advanced valves, this mesmerizing feature creates a pixel-like effect with water droplets, making it ideal for shopping malls, airports, hotel lobbies, and public spaces. Customize messages and patterns that captivate audiences and enhance any environment.

How It Works: Water Curtain Control System

Each sub-controller manages up to 30 water nozzles via solenoid valves, allowing for intricate displays. View the control system diagram below to see how DWC technology brings water to life.

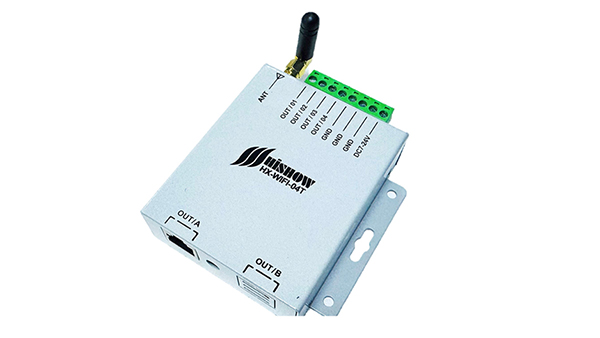

Main Controller HX-Wifi-04T

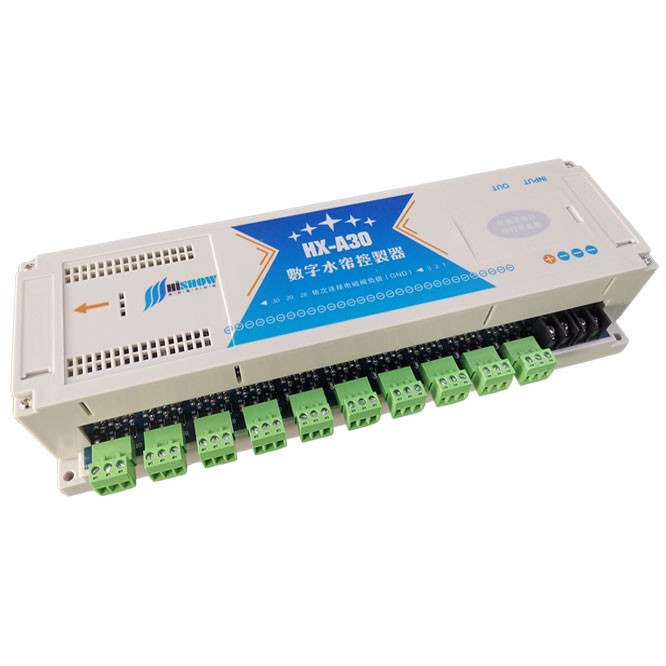

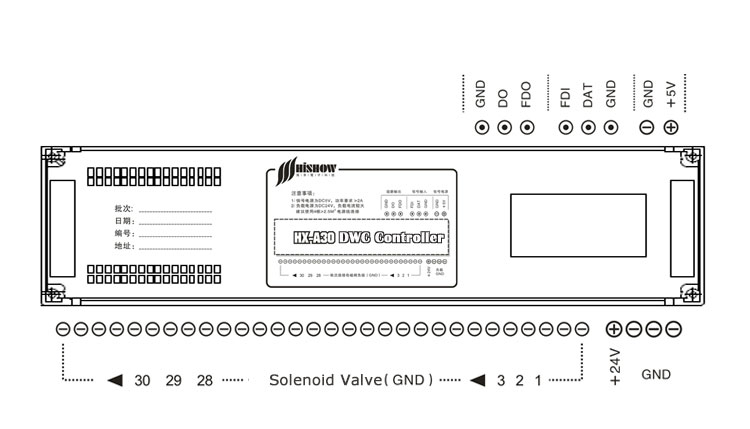

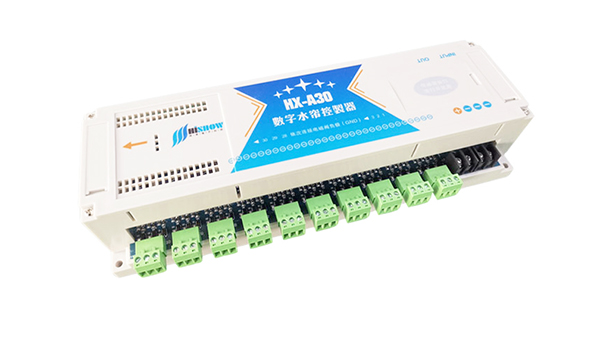

Sub-Controller HX-A30

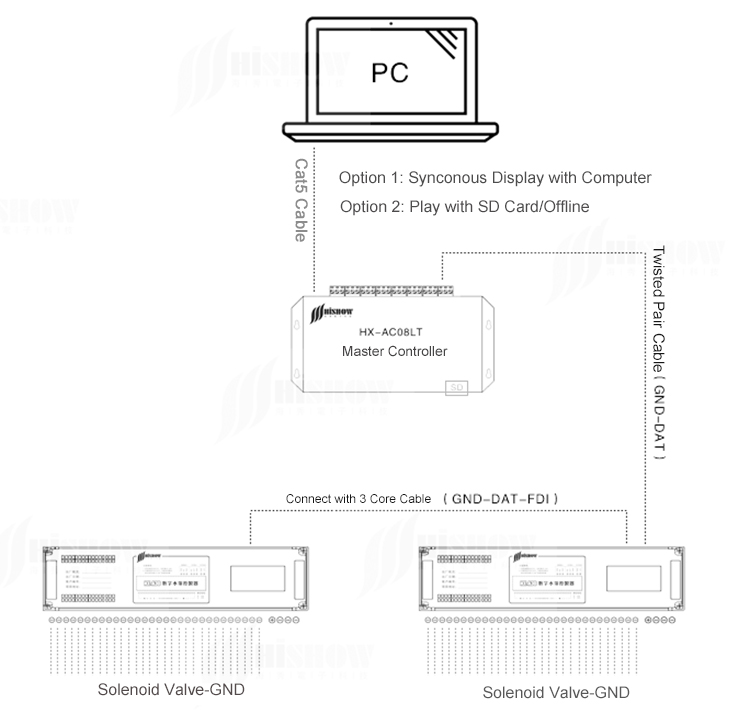

Diagram Example

How a Digital Water Curtain Works?

1. Fill the Water Tank

The digital water curtain system starts by filling the water tank located directly below the curtain. This tank supplies water to the curtain in a closed-loop system, ensuring that water is recycled continuously. Typically, the water is only added once during setup.

2. Start the System

Once the tank is filled, turn on the system. The control panel activates the submersible pump and manages the opening and closing of valves in the Digital Water Curtain. These valves create stunning visual effects, forming patterns and "pixels" of falling water.

3. Select Text or Images

Using a laptop or smartphone, choose the text, images, or patterns you’d like to display on the curtain. The content is transmitted to the water curtain, and the display appears instantly, creating a captivating and dynamic effect.

4. Experience the Magic

Digital water curtains come with multiple built-in patterns and continuous waterfall modes. Some models are even equipped with motion sensors, allowing you to interact with the water display, making the experience truly immersive.

Customize Your Water Display

Let your creativity flow by adding images, logos, and video effects to the water curtain for unforgettable events and installations. The DWC is perfect for corporate events, luxury spaces, and high-end residences. Enjoy complimentary software to fully control and personalize your experience.

Interactive Waterfall Swing (with motion sensors)

The Interactive Waterfall Swing combines a playground swing with synchronized water jets. Perfect for parks and public spaces, it offers a thrilling experience as riders glide through a misty waterfall. Built for durability and low maintenance, this unique feature adds playful elegance to any outdoor setting.
