Dynamic White Lightbox
- Product Item： P40mm
- LED:24xSMD 2835
- Voltage:DC 12V
- Size:L 960xW 16 mm
- Controller:T1K
Product description： Print Dynamic White SEG Lightbox,Programmable LED Lattice Backlighting
Description

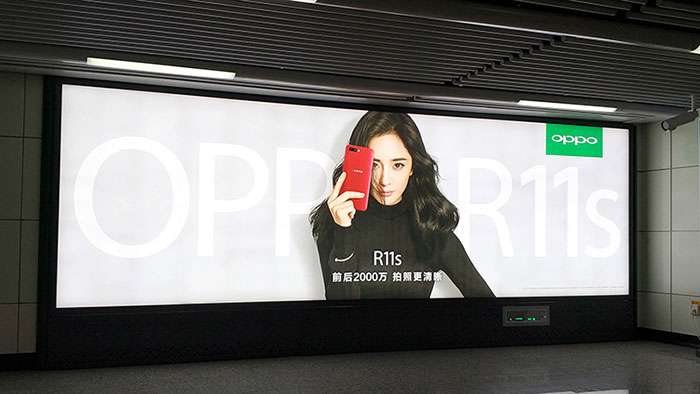

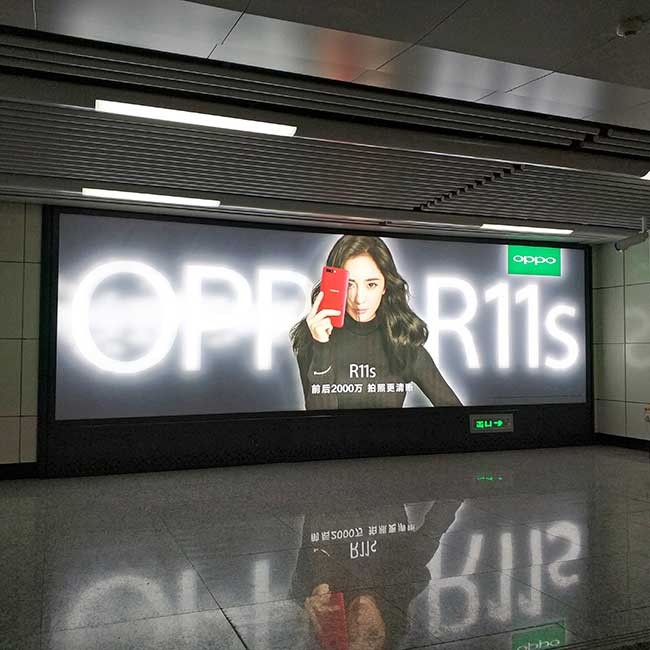

Dynamic SEG Lightbox
Programmable Text, Image, and Animation Backlighting

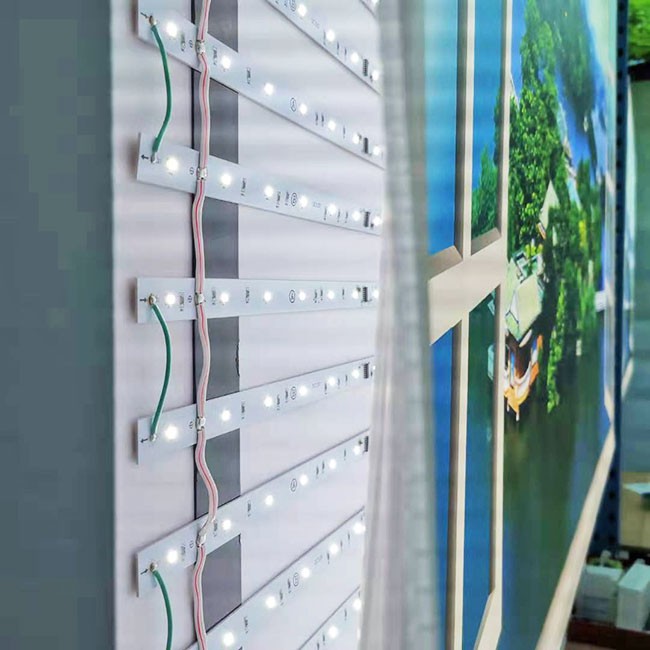

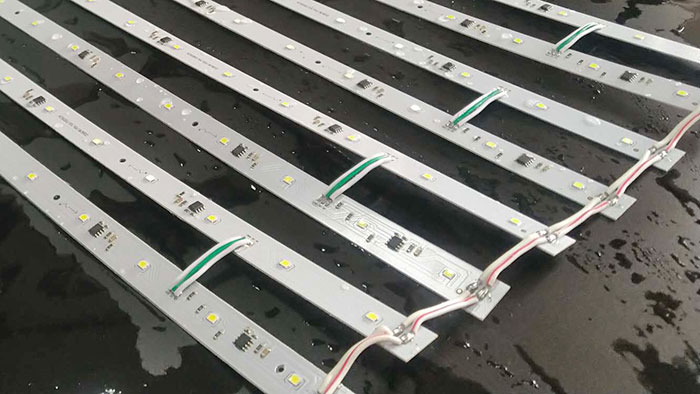

P40mm Programmable LED Lattice Light
Technical Specifications
| LED | 24xSMD 2835 |
|---|---|
| Dimension | L 960 x W 16 mm |
| PCB Thickness | 1.0 mm |
| Pixel Pitch | 40 mm |
| Drive Voltage | DC 12V |
| Peak Power | 4.8w/pc |
| Avg. Power | 1.5w/pc |
| Signal Patch | S |
| Control Chip | Constant Current + Breakpoint Transmission |
| Heating Dissipation | Fiber PCB board |
| Weight | 40g/unit |
| Connection | Power cable, Signal port |
| Installation | Screw / Magnet |
| Energy-saving Rate | 35% |
| Certification | CE / Rohs / FCC |
| Warranty | 12 months |
Quality Programmable Backlight Led Lattice
