Product description： P40 Outdoor Flexible LED Mesh Display Screen for shop front elevation,party and event light rgb background curtain
A rollable, 45% transparent LED pixel mesh for building facades, event stages and architectural lighting. Three brightness configurations — P41.6-WGP-1 / WGP-2 / WGP-3 — cover night decoration through high-ambient outdoor facade use, with 41.6 mm pitch, 16-bit grayscale, 3,840 Hz refresh and IP67 protection.

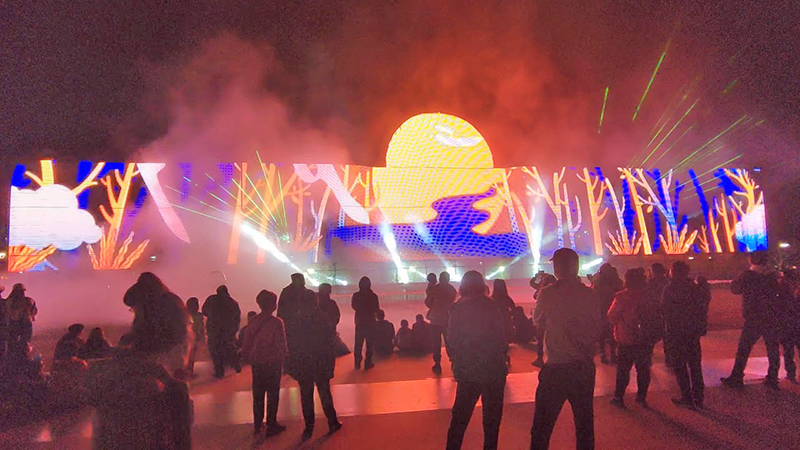

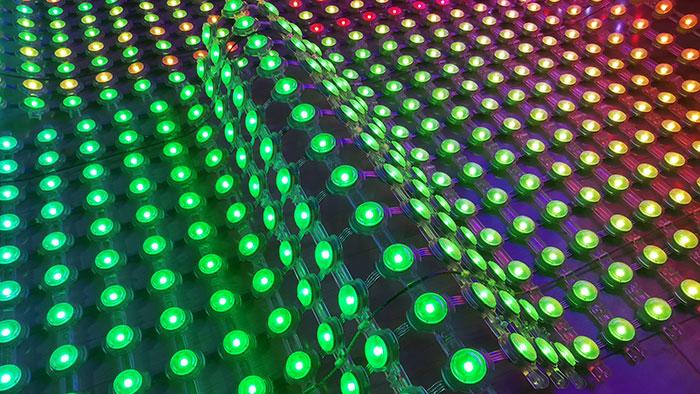

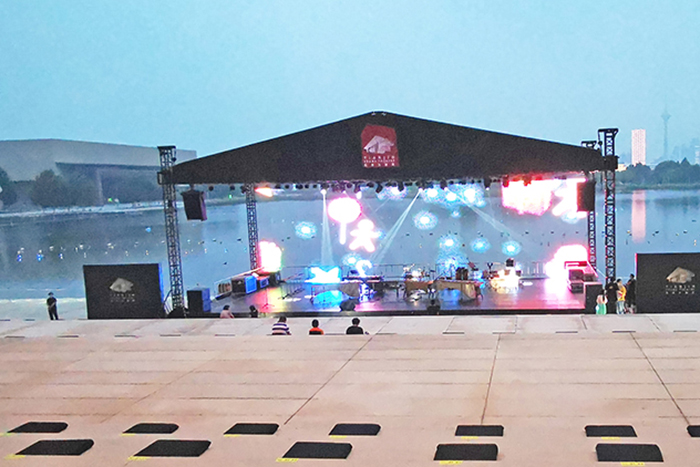

Rigid LED cabinets need a flat, load-bearing frame. A flexible pixel mesh follows curves, arches and irregular surfaces, and its open structure lets air and light through. That makes it suitable for building elevations where a solid screen would block windows, and for temporary stages where transport volume and rigging weight decide the budget.

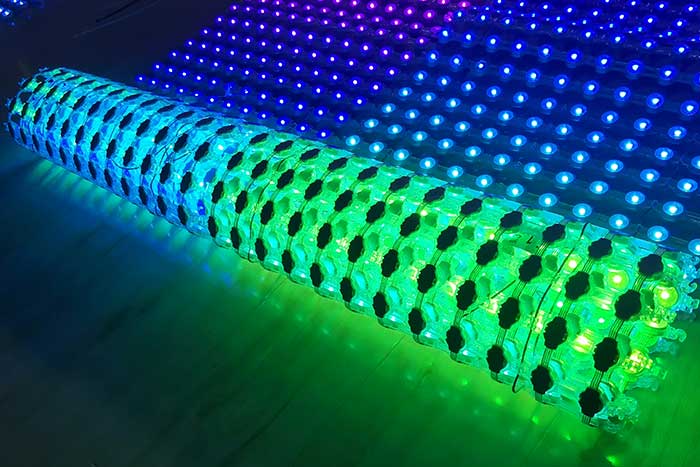

Because the mesh is supplied in rollable sections, it can be sized to the actual facade rather than forced into standard cabinet dimensions. Pixel pitch, brightness and power configuration are specified together with the viewing distance and the mounting structure.
All three configurations share the same 41.6 mm pitch, 576 dots/m² pixel density, 140° viewing angle, 3,840 Hz refresh and IP67 rating. They differ in LEDs per pixel, brightness and power draw — the deciding factor is the light level at the installation.
| Parameter | P41.6-WGP-1 | P41.6-WGP-2 | P41.6-WGP-3 |
|---|---|---|---|
| LEDs per pixel | SMD3535 × 1 | SMD3535 × 2 | SMD3535 × 3 |
| Brightness | 2,500 nits | 3,500 nits | 4,800 nits |
| Contrast | 1:1,200 | 1:1,200 | 1:2,000 |
| Max power | 160 W | 340 W | 460 W |
| Average power | 70 W | 180 W | 240 W |
| Unit weight | 4.5 kg | 4.8 kg | 5.1 kg |
| Supply voltage | DC 12 / 15 V | DC 12 V | DC 12 V |
| Pixel density | 576 dots/m² | ||
| Pixel pitch | 41.6 mm horizontal / 41.6 mm vertical | ||
| Grayscale | 16 bit (65,536 levels) | ||
| Viewing angle | 140° horizontal / 140° vertical | ||
| Scan mode | Static | ||
| Refresh rate | 3,840 Hz | ||
| Transparency | 45% | ||
| Ingress protection | IP67 | ||
| Housing & base | PC, clear or black | ||
| Lifespan | ≥ 80,000 hours | ||

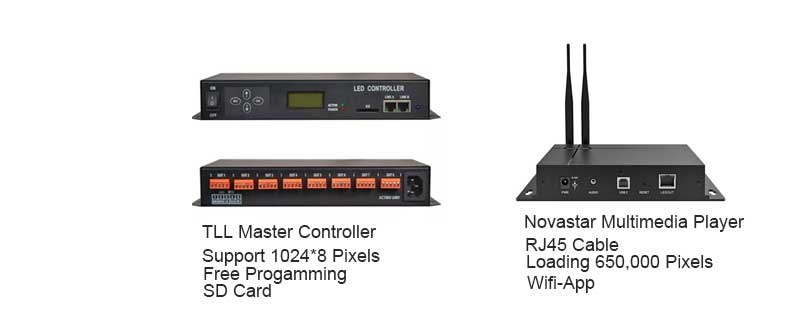

The mesh display is compatible with Novastar control products, supporting USB, HDMI and wireless distribution and management from a PC or smartphone. That makes it straightforward to integrate with an existing Novastar-based playback setup, or to run content from a media player on site.
For multi-zone facades, the control plan should define how content is split between mesh sections, how zones are synchronized and how the signal reaches each section — these decisions affect both the cabinet-free layout and the content workflow.
Tool-free connections shorten assembly time, and rollable sections reduce transport volume. For permanent installations, plan the mounting structure, power distribution and service access together with the screen layout — the mesh's low weight per unit helps, but the supporting structure and wind area still need engineering.
We supply the mesh screen, control components and project-specific accessories. Share your facade dimensions, viewing distance, ambient light conditions and mounting details for a configuration proposal.
Technical datasheet: P41.6 flexible LED curtain technical specifications (PDF)
LEDs per pixel, brightness, contrast, power consumption and weight. WGP-1 uses one LED per pixel at 2,500 nits (160 W max), WGP-2 two LEDs at 3,500 nits (340 W), and WGP-3 three LEDs at 4,800 nits (460 W).
576 pixels per square metre. A 10 m² section carries roughly 5,760 pixels, so content should be designed for viewing at distance rather than for close reading.

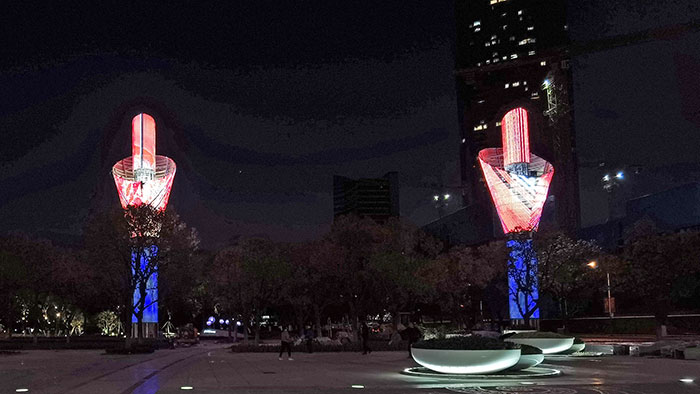

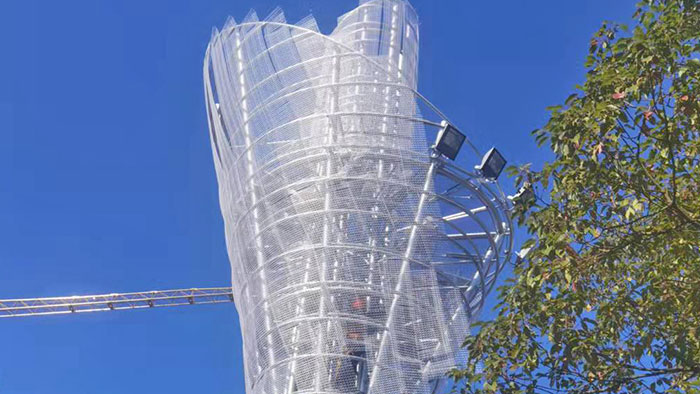

The flexible mesh follows curves, arches and custom forms, which is why it is used on sculptures and facade features. Final shape, section size and pixel mapping are project-specific — confirm them before production.
IP67 protects the enclosure against dust and water ingress. Long-term reliability also depends on installation quality, cable entry sealing, drainage and scheduled inspection.
The display is compatible with Novastar control products and supports USB, HDMI and wireless management. The exact player and sending configuration depends on pixel count, zone layout and whether content is scheduled or played live.
Visibility depends on ambient light and the model chosen. WGP-3 at 4,800 nits is intended for brighter environments; for direct sunlight on a facade, confirm expected performance with a site assessment rather than assuming a specification number equals on-site readability.
Send facade dimensions, viewing distance and ambient light conditions. We will recommend the model, section layout and control plan, and confirm lead time.
