P1531 Outdoor LED Mesh Panel

Product Item： DIP1531
Application:Outdoor
Brightness:10000nits
Voltage:DC12V
Ingress Protection:IP 67

Product description： Transform your architecture with P1531 LED Mesh Display—ultra-bright (8000 nits), 70% transparent, weatherproof design. Ideal for media facades, outdoor advertising & event stages. Fast setup, low maintenance, stunning 16-bit visuals. Get a quote tod

Description

P1531-DIP LED Mesh Screen

P1531 Outdoor LED Mesh Panel
Transform Your Building Into a Dynamic Digital Canvas

Designed for architects, event professionals, and advertising innovators, the P1531 Outdoor LED Mesh Display delivers breathtaking visual performance without compromising your building's transparency. With 10000 nits of brightness and 70% light transmission, this cutting-edge mesh screen creates stunning Media Facades that captivate audiences while preserving natural light flow.

Featuring:

✅ 10000 nits ultra-high brightness for vibrant visuals, even in direct sunlight.
✅ Premium Epistar LED Chips ensuring durability and exceptional performance.
✅ Incredible 16-bit color resolution for smooth and dynamic visuals.

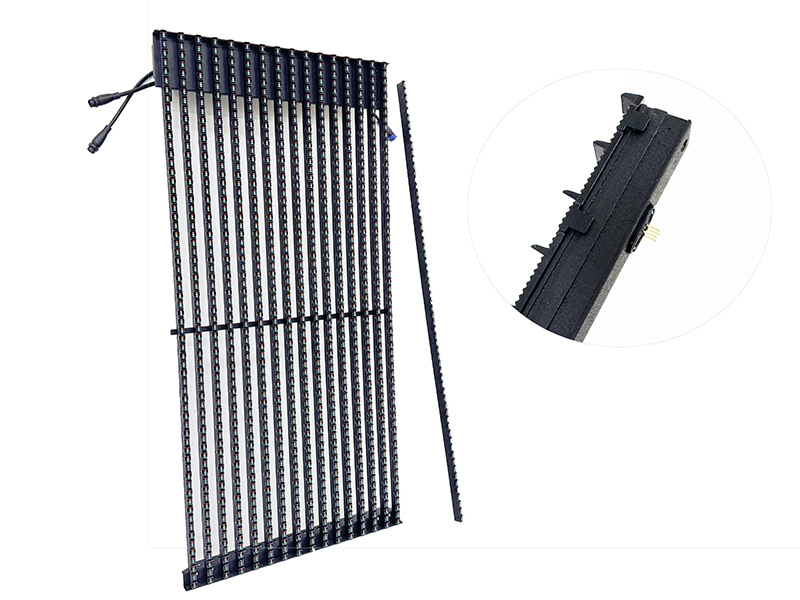

This state-of-the-art mesh panel offers effortless setup and maintenance with innovative LED light strips and connector pins for seamless power and data transmission.

LED Display Panel

DIP LED Mesh Panel
Model	P15.625D	P1531D
Pixel Pitch	H: 15.625, V:15.625	H: 31.25, V: 15.625
Pixel Composition	346 (1R1G1B)
Resolution Per sqm	4096	2048
Unit Enclosure Size	500(W) x 1000(H)
Weight per sqm	20 kg	12.5 kg
Unit Thickness	6.7 cm
Installation Thickness	12.7 cm
Peak Power Consumption	550	450
Average Power Consumption	275	190
Screen Brightness	≥15000 nits	≥10000 nits
Gray Level	16 bit
Color Temperature	6500-9300K
Brightness Adjustment	0-255 levels
Viewing Angle	Horizontal ≥110°
Viewing Angle	Vertical ≥70°
Optimal Viewing Distance	15-300
Refresh Rate	3840 Hz
Control Method	Synchronous or Asynchronous
Driving Method	Constant Current Static
Power Supply Voltage	85-250
Design Life	≥100,000 hours
Cooling Method	Reinforced Natural Convection
LED Strip Width	9.8 mm
Lamp Strip Material	6061 Extruded Aluminum
Transparency Ratio	40%	70%
Ingress Protection	IP67
Operating Temperature	-35 ~ +80°C
Storage Temperature	-55 ~ +121°C
Frame Material	Aluminum Alloy(Power Coating)
Fire Resistance	V0 Class Flame Retardant

Why Choose P1531 LED Mesh Display?

Uncompromising Visual Performance
Experience ultra-bright 8000 nits output that ensures your content remains vibrant and visible even in direct sunlight. The advanced 16-bit color processing delivers smooth gradients and lifelike color reproduction, making your installations stand out in any environment.
Transparent by Design
With an impressive 70% transparency ratio, the P1531 maintains your building's aesthetic integrity while adding digital capabilities. Natural light passes through effortlessly, keeping interiors bright and energy-efficient.
Built for the Outdoors
Engineered with IP67 waterproof protection and operating temperatures from -35°C to +80°C, this mesh panel withstands harsh weather conditions. The rugged aluminum construction ensures long-term reliability with minimal maintenance requirements.
Effortless Installation & Control
Pre-integrated Novastar control system supports USB, HDMI, and wireless connectivity. The modular design with quick-connect pins enables rapid deployment, reducing installation time and labor costs by up to 50%.

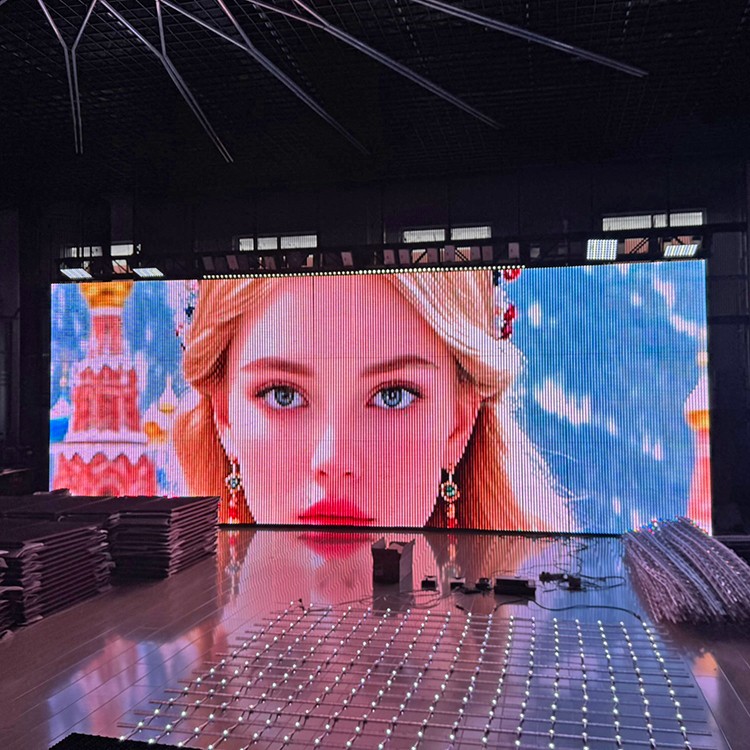

P1531 outdoor LED mesh panel on building facade

Control by Novastar

The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) distribution and management.
