Product description： China P25 Drone Drone Mounted Flying Display LED Screen,Modular,Lightweight, and Airborne – Ideal for Drone Light Shows and Sky Advertising.Outdoor Advertising Trend,Lithium batteeies support 50 minutes flying,Wifi-App control. .
As a professional transaprent led mesh manufacturer we provide custom flying LED Screens Transform your events with our cutting-edge aerial LED display technology. Featuring 80,000 vibrant RGB LEDs on a massive 5×10 meter transparent mesh screen, delivering breathtaking sky-high performances for up to 60 minutes on a single charge.
-P25 Drone Mounted LED Display Mesh Screen Standard Size and Weight
Technical Specification
| Drone LED Mesh Screen Specification | ||||
| Item | P20LMP | P25LMP | P50LMP | P100LMP |
| Pixel Pitch | 20mm | 25mm | 50mm | 100mm |
| Pixel Type | SMD3550×1 | |||
| Pixel Density | 2500 dot/㎡ | 1600 dot/㎡ | 400 dot/㎡ | 100 dot/㎡ |
| Drive IC Characteristics | Breakpoint Resume | |||
| Grayscale Level | 8bit (256) | |||
| Screen Brightness | 5000 cd/㎡ | 3600 cd/㎡ | 1000 cd/㎡ | 300 cd/㎡ |
| Contrast Ratio | 1:1000 | 1:1000 | 1:600 | 1:200 |
| Wind Resistance | 5 M/S | |||
| Battery Solution | 12V/18Ah | |||
| Best Viewing Distance | 20-3000 m | 25-3000 m | 50-3000 m | 100-3000 m |
| Maximum Power Consumption | 320 W/㎡ | 200 W/㎡ | 50 W/㎡ | 15 W/㎡ |
| Average Power Consumption | 170 W/㎡ | 120 W/㎡ | 35 W/㎡ | 10 W/㎡ |
| Product Weight | 1.2 kg/㎡ | 0.6 kg/㎡ | 0.4 kg/㎡ | 0.16 kg/㎡ |
| Refresh Rate | 3840 Hz | |||
| Life Span | ≥50000 H | |||
| Transparency | 50% | 70% | 80% | 95% |
| Ingress Protection | IP40 | |||
| Product Material | UV-resistant PC | |||
Drone Flying Advertising Case

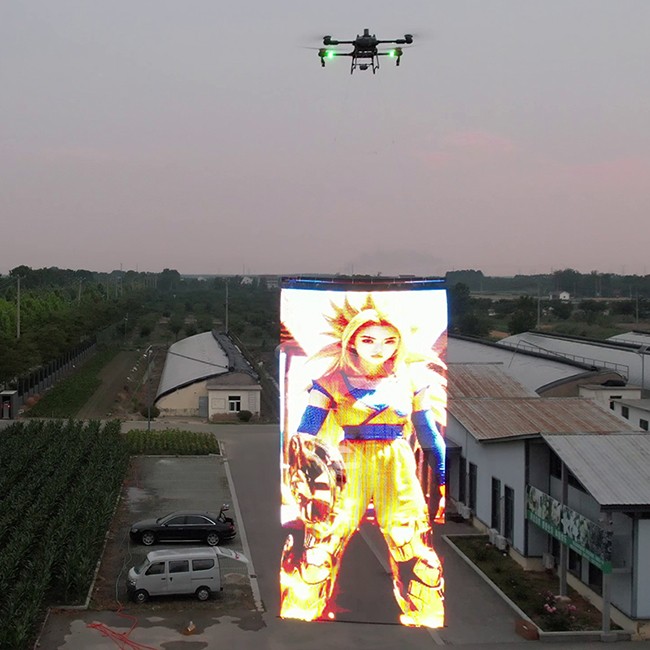

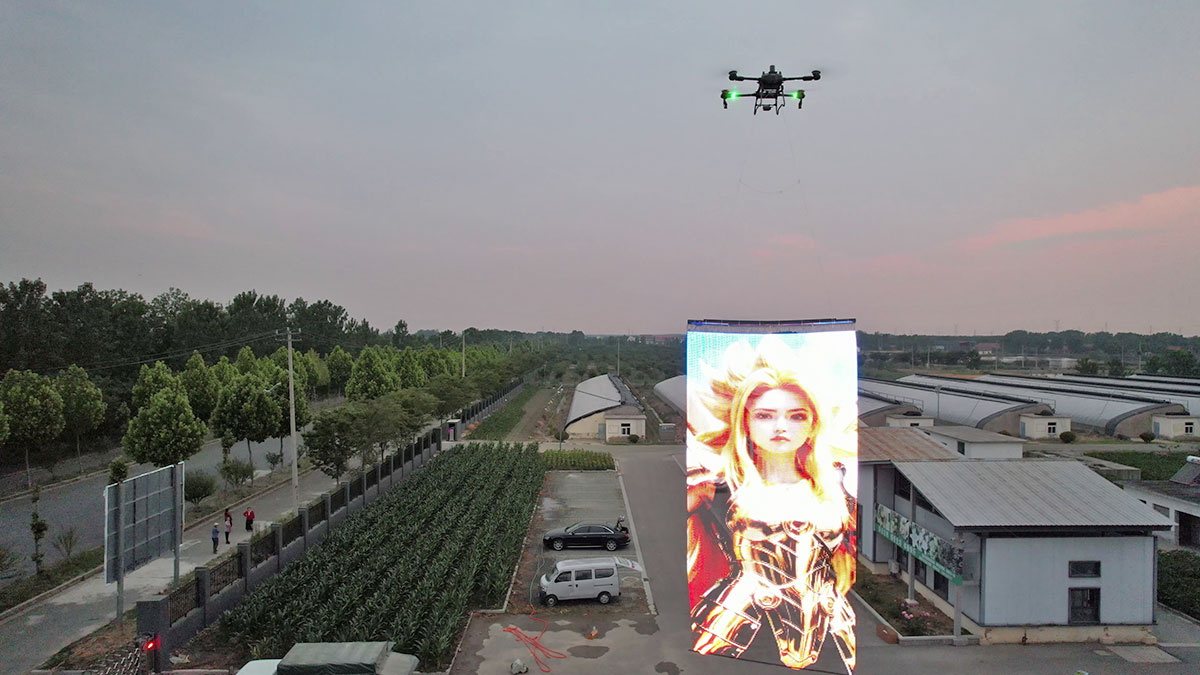

"4×8m Drone Flying LED Mesh Screen — fully assembled and tested in our factory, then successfully flown at a small farm entrance"
The entertainment and advertising industries are being transformed by drone advertising flying LED mesh screen technology — a groundbreaking innovation that merges flexible textile design with advanced LED display systems.
This next-generation display solution enables drones to carry lightweight, high-resolution LED meshes that float, move, and illuminate the sky, delivering unforgettable visual experiences that were once impossible.
A drone LED mesh screen is an ultra-lightweight, Flexible LED Display system engineered for aerial use. Built on a mesh substrate embedded with individually addressable LED pixels, it delivers high-quality images and videos while suspended in mid-air.
Flexible textile-based mesh with integrated LED pixels
Lightweight structure optimized for drone payload limits
Modular, scalable panels for custom screen sizes
Weather-resistant and UV-protected materials for outdoor use
Each LED pixel is independently controlled to render videos, animations, or graphics across the flexible mesh. The screen's bendable structure allows it to adapt to various shapes and flight configurations — crucial for dynamic aerial performances and creative installations.
With a superior weight-to-size ratio, the LED mesh allows drones to carry larger displays without affecting flight stability or battery life.
Minimizes wind resistance
Reduces overall weight
Improves heat dissipation
Maintains smooth aerodynamics
The screen conforms to curved or irregular surfaces, enabling:
3D visual effects and wrap-around displays
Installation around architecture or natural features
Repeated folding and transport without damage
Designed for outdoor reliability with:
IP65+ waterproof protection
UV-resistant coating for longevity
Operable temperature range from -20°C to +60°C
Dust and moisture resistance for all-weather operation
Easy customization of screen dimensions
Tool-free connection system for fast setup
Seamless scaling from small aerial units to massive sky displays
Brightness 3,600 nits for afternnon and night drone light show.
Full RGB spectrum with 16.7 million colors
High refresh rate (≥3,840Hz) for flicker-free video capture
Wide viewing angles of 140° or more
Create aerial stage backdrops with synchronized drone visuals that move and pulse with the music — delivering a truly immersive live experience.
Ideal for floating brand logos, moving product showcases, and interactive aerial presentations that capture audience attention and media coverage.
Perfect for urban skylines, beachside promotions, or nighttime campaigns, drone LED displays turn every performance into a viral spectacle.
Deploy flying LED screens for dynamic scoreboards, team introductions, or mid-game entertainment, transforming the audience experience.
Artists and designers use drone LED meshes for light sculptures, facade projections, and immersive public art, merging technology with creativity.
Add magic to celebrations with personalized sky messages, photo montages, and floating ambient lighting that make memories truly unique.
Unlike traditional LED walls requiring trusses and rigging, drone LED mesh screens are lightweight, wireless, and quick to deploy, reducing setup time and labor costs.
Thanks to modern LED chips and open-mesh construction, the system consumes significantly less power, optimizing battery life for extended aerial operation.
No rigid frames or sharp edges
Lightweight and soft materials minimize injury risk
Fire-retardant and compliant with safety standards
Over time, this system offers lower logistics, installation, and maintenance costs, and can be reused across multiple projects and locations.
Drone LED mesh screens unlock new creative dimensions:
Displays can move dynamically in 3D space
Screens can change shape mid-performance
Multiple drones can synchronize to form massive floating visuals
Successful deployment begins with:
Assessing drone payload and flight duration
Defining screen size, content, and environment
Coordinating wireless control and safety protocols
Once configured, the drone LED mesh screen can be assembled and launched within minutes, offering unmatched flexibility for both temporary and recurring aerial ev
