Product description： P25 Flexible LED Mesh Screen is Suitable for both conventional lighting effects and streaming media, this lightweight and easy-to-install mesh is practical for both indoor and outdoor applications.
The P25 LED Mesh Screen is a flexible, transparent LED display designed for large-area digital signage, Media Facades, stages, exhibitions, events and architectural applications.
With a 25 mm pixel pitch, 1600 pixels/m², high brightness and approximately 45% transparency, the P25 LED mesh display combines full-color video performance with an open and lightweight mesh structure.
Its flexible LED Curtain design allows the display to cover large surfaces while maintaining airflow and visual openness. The P25 LED mesh can be configured for both indoor and outdoor installations.
Unlike conventional rigid LED cabinets, the P25 LED mesh screen uses an open mesh structure to create a transparent LED display surface. This design is especially useful for projects where a solid LED wall would create excessive visual or structural obstruction.
The LED mesh curtain can be used as a digital video display, decorative LED curtain or dynamic architectural media surface. It can integrate with existing building structures, stage designs and event installations.
With approximately 45% transparency, the P25 LED mesh provides a balance between image visibility and architectural openness. It is suitable for large LED displays where transparency, flexibility and lower visual obstruction are important.
The P25 LED mesh screen is designed for large-scale LED media facade projects. Its transparent structure allows the display to visually integrate with architectural surfaces instead of forming a conventional solid video wall.
It can be used on commercial buildings, entertainment venues, architectural structures and other large surfaces requiring dynamic digital content.
The flexible P25 LED mesh curtain is suitable for stage backgrounds, concerts, festivals, exhibitions and corporate events. Its open structure provides a different visual effect from traditional solid LED cabinets.
The mesh display can be used as a large video background, decorative LED curtain or transparent stage screen while maintaining a more open visual environment.

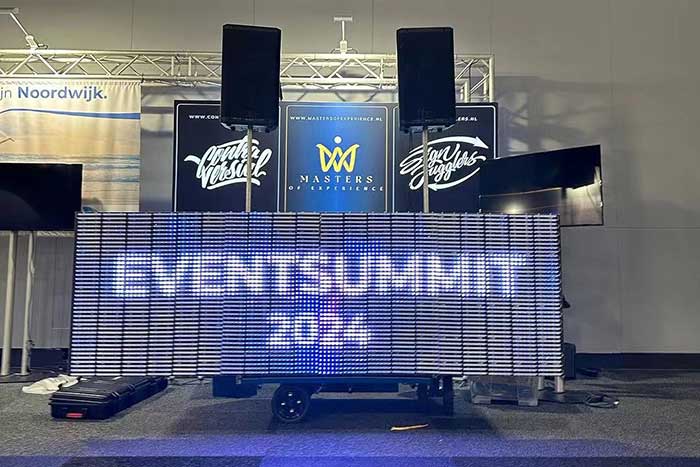

P25 LED mesh can also be configured as a DJ booth LED screen for clubs, concerts, festivals and entertainment venues.
The transparent LED mesh structure can be integrated with stage lighting and existing booth structures to create dynamic visual effects.

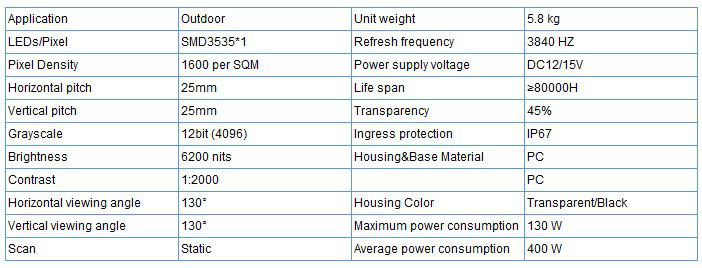

| Specification | P25 RGB | P25 RGBW-16bit |
|---|---|---|
| Application | Indoor / Outdoor | Indoor / Outdoor |
| Pixel Pitch | 25 mm | 25 mm |
| Pixel Density | 1600 pixels/m² | 1600 pixels/m² |
| LED Type | SMD3535 | SMD5050 RGBW |
| Grayscale | 12 bit (4096) | 16 bit (65536) |
| Brightness | 5500 nits | 6800 nits |
| Contrast Ratio | 1:2000 | 1:1500 |
| Horizontal Viewing Angle | 130° | 140° |
| Vertical Viewing Angle | 130° | 140° |
| Scan Mode | Static | Static |
| Maximum Power Consumption | 400 W | 480 W |
| Average Power Consumption | 130 W | 140 W |
| Unit Weight | 5.8 kg | 6 kg |
| Refresh Rate | 3840 Hz | |
| Power Supply Voltage | DC12/15V | DC5V |
| LED Lifetime | ≥80,000 hours | |
| Transparency | 45% | |
| Ingress Protection | IP67 | |
| Housing & Base Material | PC | |
| Housing Color | Clear / Black | |
The P25 LED mesh display can be configured with Novastar LED control systems for professional video playback and screen management.
Depending on the project configuration, the control system can support HDMI video input, USB content playback and wireless management through smartphone or PC.
For large LED mesh installations, the controller, distribution boxes and sub-controllers can be configured according to screen size, power distribution and cable distance.
800W / 1200W PSU + 32 / 64 Universe Sub-controller with pre-installed Novastar receiving card
The P25 LED mesh screen can be configured according to the required screen width, height, installation environment and support structure.
For large-area installations, the screen design should consider suspension points, structural support, controller location, distribution boxes, power supply and cable routing.
RoyalAdTek provides project-based LED mesh display configurations according to screen dimensions, viewing distance, brightness, installation environment and control requirements.
Open Structure: The transparent mesh design reduces the visual obstruction of a conventional solid LED wall.
Large-Area Coverage: Suitable for large architectural surfaces, stages and event installations.
Flexible Project Design: Screen size, pixel pitch, brightness and control configuration can be selected according to project requirements.
Professional Control: Compatible with Novastar-based LED control solutions.
Indoor and Outdoor Applications: IP67 protection supports demanding display environments.
Every LED mesh display project has different requirements. To recommend the correct configuration, please send us the following information:
A P25 LED mesh screen is a transparent LED display with a 25 mm pixel pitch. Its open mesh structure is designed for large-area digital signage, media facades, stages, events and architectural applications.
The standard P25 specification provides approximately 45% transparency, helping maintain visual openness while displaying full-color digital content.
Yes. The P25 specification is rated IP67 and is designed for both indoor and outdoor applications.
The P25 RGB version is specified at 5500 nits. The RGBW-16bit version is specified at 6800 nits.
The P25 LED mesh screen can be configured with Novastar control systems. HDMI, USB and wireless content management options are available depending on the project configuration.
Yes. The LED mesh display can be configured according to screen size, pixel pitch, brightness, installation method, power distribution and control requirements.
Please provide the screen size, viewing distance, installation environment, preferred pixel pitch, brightness requirement, control method and quantity.
RoyalAdTek provides flexible LED mesh screens, LED mesh curtains and transparent LED display solutions for architectural, commercial, stage and event applications.
The P25 LED mesh display combines 25 mm pixel pitch, high brightness, 45% transparency, IP67 protection and 3840 Hz refresh rate in a flexible open-mesh structure. It is suitable for media facades, stage LED screens, event displays, DJ booth LED screens, architectural displays and large-format digital signage.
Send us your project size, viewing distance and application. We will recommend the suitable LED mesh configuration.
Width × Height | Viewing Distance | Indoor / Outdoor | Pixel Pitch | Quantity
