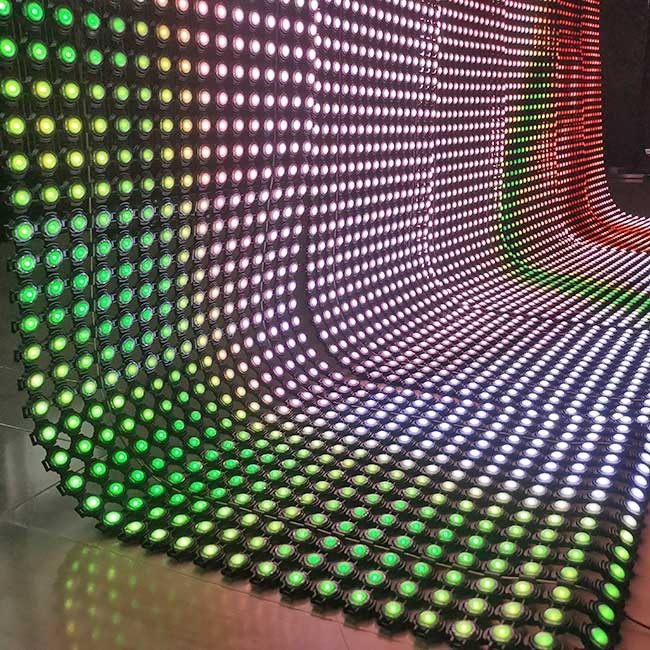

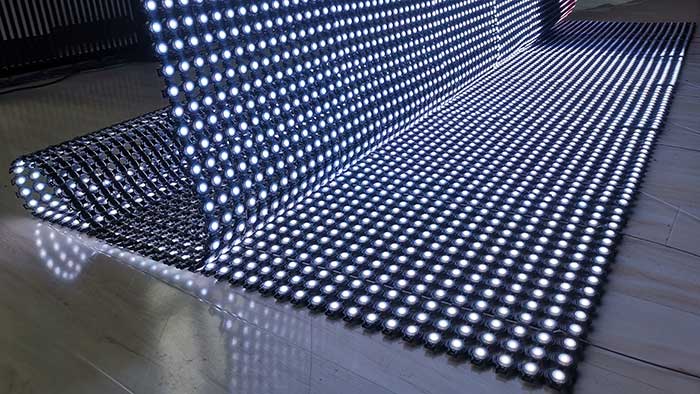

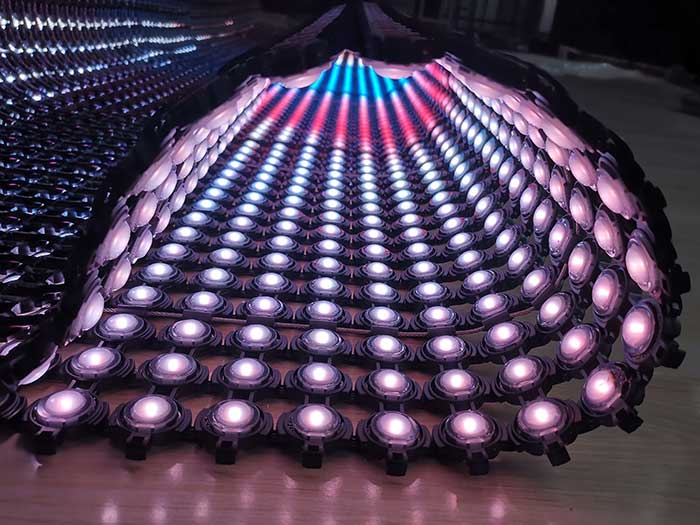

Product description： The P31.25 LED mesh screen comes in a standard width of 50 CM, while the length/height is custom-made. For example 300*50 CM one roll.15.625mm, 25mm, 31.25mm, 50mm, 80mm, and 120mm pitch. Each module has 1/2/3/4 LEDs. The beam angle is 140 degrees.
This 5V 16-bit LED mesh curtain screen is available in RGB and features Nationstar SMD2222 LEDs. The mesh comes in a standard width of 50 cm, with customizable length/height, such as 300x50 cm per roll. Available pitch options include 15.625mm, 25mm, 31.25mm, 50mm, 80mm, and 120mm. The beam angle is 140 degrees, and each module provides a lumen output of 16lm. It connects to any 5V PSU with ingress protection rated at IP67. Custom specifications and sizes are available upon request.
Download
|
LED Mesh Screen |
|||
| Model | P31.25-WGP-1 | P31.25-WGP-2 | P31.25-WGP-3 |
| LEDs/Pixel | SMD3535*1 | SMD2727*2 | SMD2727*3 |
| Pixel Density | 1024 | ||
| Horizontal pitch | 31.25mm | ||
| Vertical pitch | 31.25 mm | ||
| Grayscale | 16 bit (65,536) | ||
| Brightness | 3600 nits | 5100 nits | 7500 nits |
| Contrast | 1:1200 | 1:1200 | 1:2000 |
| Horizontal viewing angle | 140° | ||
| Vertical viewing angle | 140° | ||
| Scan | Static | ||
| Maximum power consumption | 260W | 420W | 610W |
| Average power consumption | 120W | 150W | 280W |
| Unit weight | 3.5kg | 4.8kg | 5.1 kg |
| Refresh frequency | 3840 HZ | 3840 HZ | 3840 HZ |
| Power supply voltage | DC12/5V | DC 12V | DC 12V |
| Life span | ≥80000H | ||
| Transparency | 35% | 35% | 35% |
| Ingress protection | IP67 | ||
| Housing&Base Material | PC | ||
| Housing Color | Clear/Black | ||
