  • MR-3F12B DMX512 Master Controller

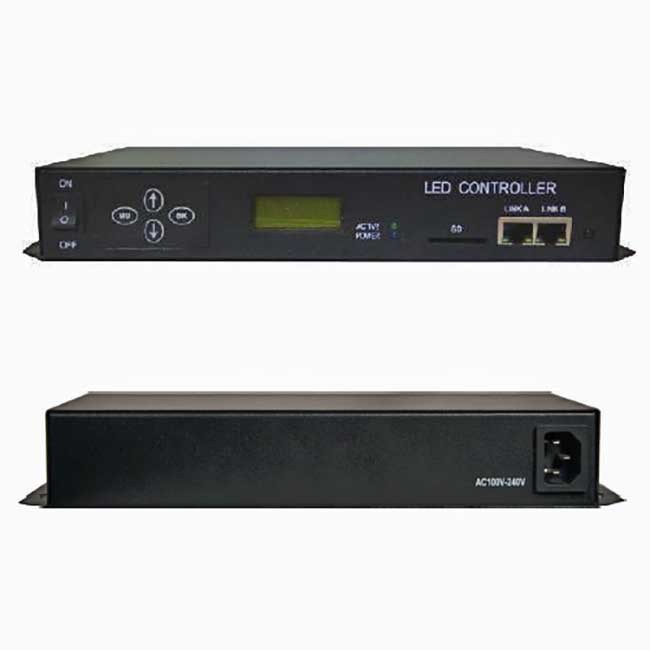

MR-3F12B DMX512 Master Controller

  • Product Item:MR-3F12B
  • DMX or SPI,Artnet
  • SD Card Input or RJ45 Live
  • 450,000 Channels
  • 283*134*45mm
  • Product description:Illuminate the Night: Explore Our Advanced Lighting Control Solutions with MR-3F12B Master Controller
  • LED Controller  , DMX conrtoller  , MR-3F12B  , led lighting solution
    Inquiry Send Email

    Description

    MR-3F12BStandard Series Main Controller is designed for night scene lighting projects. This third-generation product boasts advanced features, utilizing high-end FPGA chips to support enhanced computing speed, increased storage capacity, and expandability for additional load channels. The controller facilitates capacitive multi-touch operation, streamlining on-site debugging, and supports an impressive output of up to 450,000 channels. With surge protection up to 1.5KV, it excels in both high and low-temperature environments.

    Key Features:

    1. Maximum Load Capacity: MR-3F12B supports an outstanding maximum load of 450,000 channels.

    2. Cascade Transmission: Enjoy unlimited cascade transmission capabilities with no restrictions on the number.

    3. Playback Options: The system supports automatic, timing, and holiday preset effect playback for versatile lighting scenarios.

    4. User-Friendly Controls: Features support for buttons and external remote control, allowing program selection, brightness adjustment, white balance adjustment, and playback speed adjustment.

    5. DMX512 Driver Chips: Supports a variety of DMX512 driver chips for offline one-key write address functionality.

    6. Local Brightness Adjustment: Periodic adjustment of local brightness is supported for customized lighting effects.

    7. Factory Settings Restoration: Easily restore factory default settings with a convenient one-key operation.

    8. ArtNet Protocol Support: Enables transparent online playback using the ArtNet protocol.

    9. Offline Management: Supports offline fix and clear device ID number for efficient device management.

    10. Switch Parallel Scheme: Improves stability with support for switch parallel scheme.

    11. Network Redundancy: Offers multi-loop ring backup to ensure uninterrupted display in case of controller or network cable failure.

    12. Real-Time Hot Backup: Supports real-time hot backup of multiple master controllers for added reliability.

    13. Independent Color Control: Enjoy independent brightness control of the three primary colors for easy white balance adjustment.

    14. Color Mixing Control: Supports various color mixing controls, including R, RB, RGB, RGBW, RGBWY, and multi-color mixing.

    15. Ethernet Interface: Utilizes an Ethernet interface and UDP protocol with a maximum distance of 100 meters.

    16. LCD Display Module: The LCD display module provides real-time information on controller parameters and status.
