  • P31.25 LED Mesh Cabinet
  • P31.25 LED Mesh Cabinet
P31.25 LED Mesh Cabinet P31.25 LED Mesh Cabinet

P31.25 LED Mesh Cabinet

  • Product Item: H3125
  • LED:DIP346
  • IC: ICN2038S
  • Brightness:7500 nits
  • Ingress Protection:IP 67

Product description: H3125 Media Facade LED Mesh Panel,Outdoor,3840HZ,Pixel Pitch 31.25*25 mm,DIP, Novastar Receiving Card, Integrated 32/40/64 outputs Sub-controller

Tags
Large LED Display Digital Facade LED Outdoor LED Curtain Transparent LED Display LED Video Wall Outdoor Media Facade Transparent LED Mesh LED Pixel Mesh Video Wall Media Facade LED Mesh Panel LED Pixel Mapping LED Stage Architectural lighting Signboard Building Facade LED Screen Architectural LED Solutions Transparent Video Wall
Inquiry Send Email

Description

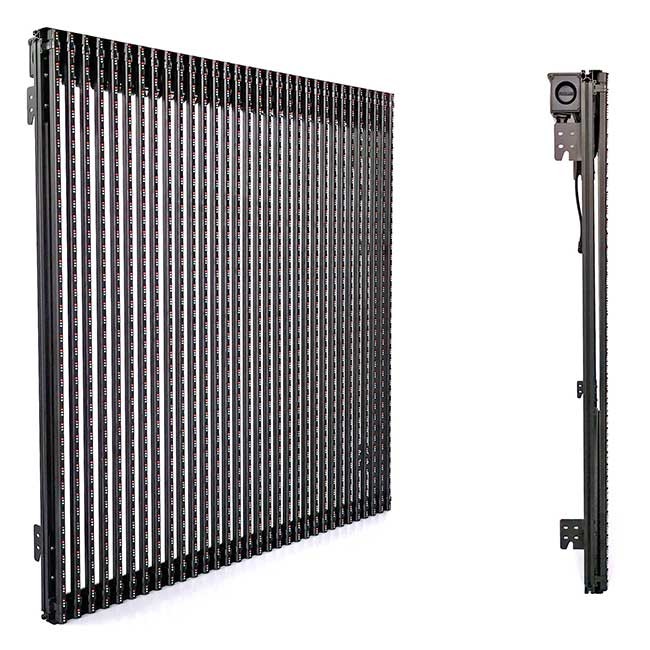

P31.25 Outdoor LED Pixel Mesh Screen Cabinet

P31.25 Outdoor LED Mesh Screen Cabinet

The P31.25 Outdoor LED Pixel Mesh Screen Cabinet is a lightweight, modular solution designed for easy installation and maintenance. It provides both front and rear maintenance access, allowing for quick repairs without downtime, making it an ideal choice for large LED displays, outdoor digital signage, and building lighting.

Key Features

Lightweight & Modular Design: The cabinet is built with durable aluminum LED profiles that allow for easy linkage between cabinets, forming larger displays effortlessly.

Quick & Easy Installation: The lightweight structure makes installation fast and efficient. Whether it’s a media façade or a large digital screen, this cabinet supports hassle-free setup.

Front & Rear Maintenance: Maintenance can be performed from both the front and back, reducing downtime significantly. It ensures that even large-scale setups are easy to manage and repair.

Outdoor Waterproof Design: Built for outdoor conditions, this cabinet is waterproof and can withstand different weather environments.

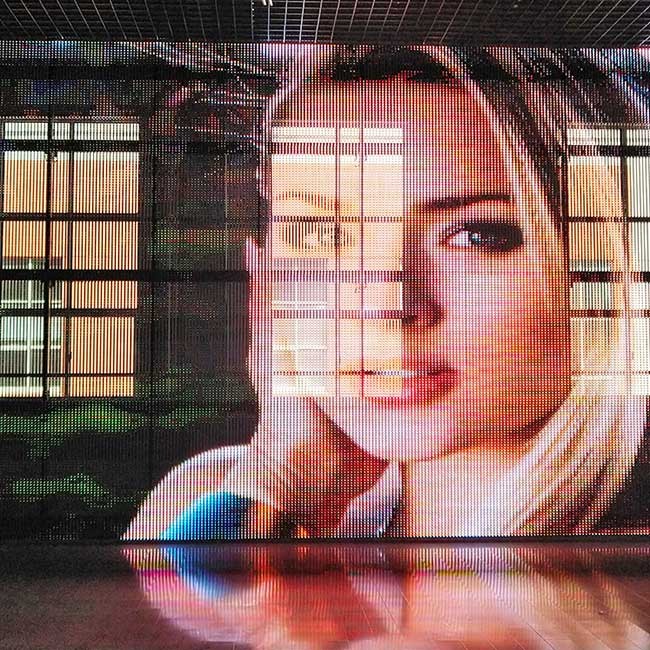

P31.25 Outdoor LED Pixel Mesh Outdoor LED Screen Installation

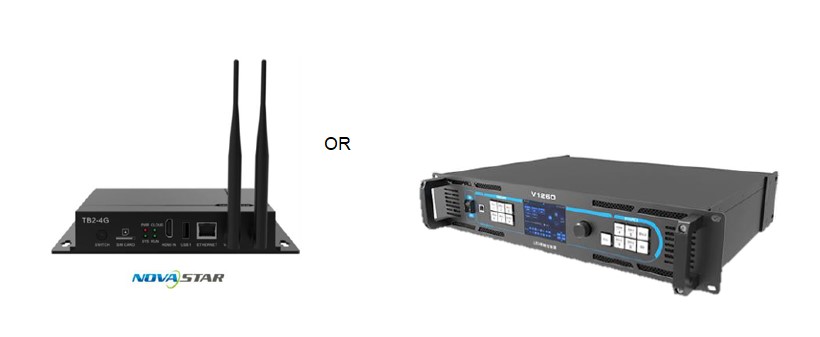

Control System

The LED mesh control system is fully compatible with Novastar, a globally recognized system. It supports a variety of inputs such as USB, HDMI, and wireless distribution through smartphone or PC.

800/1200 Watt PSU + 32/64 Universe Sub-controller (Prebuilt Novastar Receiving Card)

800/1200 Watt PSU

Technical Specifications

For detailed technical specifications, download the full PDF: Download Specifications

H3125 LED Curtain Screen
LED Type DIP 346 (1R1G1B) Pixel per m² 32x40 P
Pixel Pitch (H*V) 31.25*25mm Cabinet Size 1000x1000x120 mm
Grayscale 16 bit (65536) Brightness >7000 nits
Refresh Frequency 3840 Hz IC Type ICN2038s
View Angle H 140° V 110° Temperature -40~80°C
Transparency 65% Suggest View Distance >= 20-500 m
Max. Power Consumption 450 W/m² Avg. Power Consumption 95 W/m²
Cabinet Material Aluminum alloy Connection Signal & power one cable
Power Supply 100-240V Drive Voltage 5 V/DC
Control System Novastar LED Brand Epistar/Nationstar
Unit Weight 11.8 kg/m² Fixing Direction Vertical
Maintenance Front or Rear Ingress Protection IP67
Warranty 3 years Permissible Humidity 10-90%
