MR502 LED Controller

  • Product Item: MR502 Offline RGB LED Pixel Controller
  • Voltage: DC7.5-24V
  • Control Mode: Standalone SD card playback / Keypad setup / Remote control / Sync playback
  • Control Protocol: DMX512 / DMX512AP / USITT DMX512(1990) / SPI Output
  • Max Pixel Load: 1024 pixels per SPI port 170 pixels per DMX universe

Product description: MR502 indoor LED pixel controller with dual SPI and dual DMX512 outputs, up to 1,024 pixels per SPI port and SD card offline playback. Supports most serial LED driver ICs.

Tags
mr502 controller led controller dmx controller dmx lighting led pixel lighting LED pixel controller SPI LED controller RGB pixel control DMX512 decoder pixel mapping controller LED media facade controller digital pixel controller RGBW LED controller programmable LED controller architectural LED control system LED pixel driver SD card LED controller SPI pixel decoder DMX pixel controller
Online Inquiry Send Email

Description

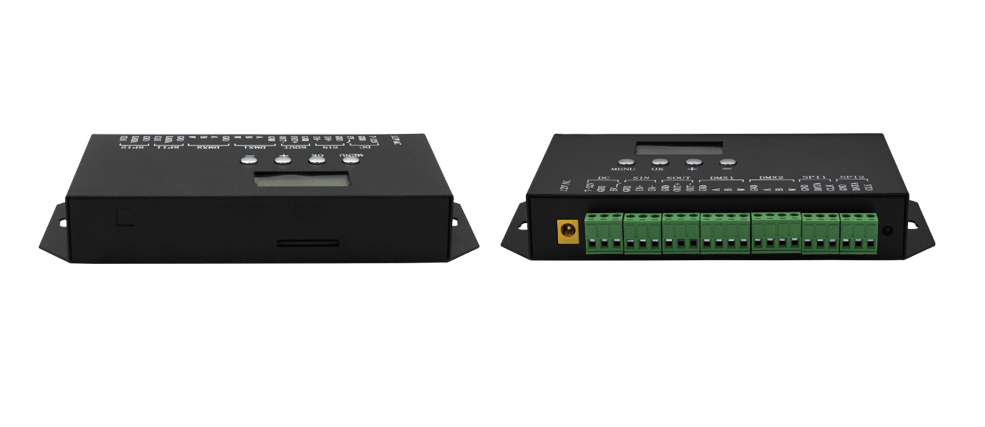

MR502 LED Pixel Controller — Dual SPI and Dual DMX512 Decoder

The MR502 (LCL-MR-502) is an indoor offline LED pixel controller with two SPI outputs and two DMX512 ports. It drives addressable RGB or RGBW pixel strings from an SD card or a DMX512 console. Each SPI port handles up to 1,024 pixels; each DMX512 universe handles up to 170 RGB pixels. It is an IP20 device for indoor installations.

2 × SPI outputs 2 × DMX512 ports 1,024 px per SPI port 170 px per DMX universe DC 7.5–24 V IP20 indoor

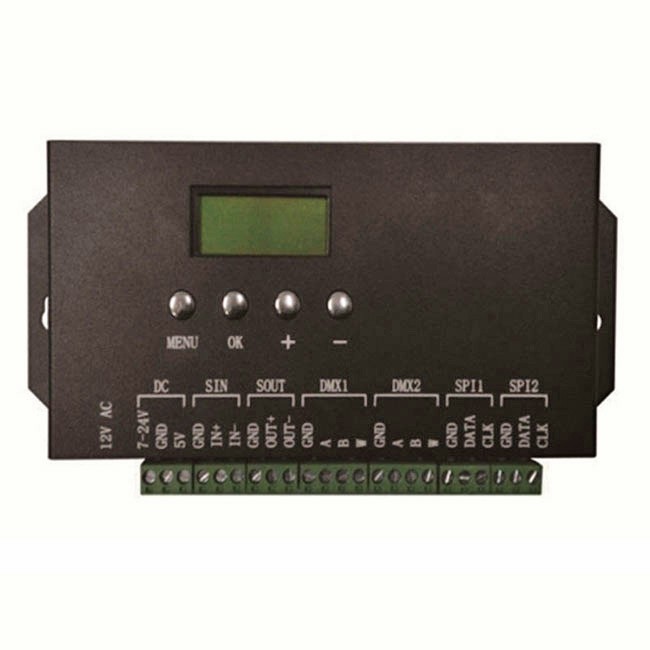

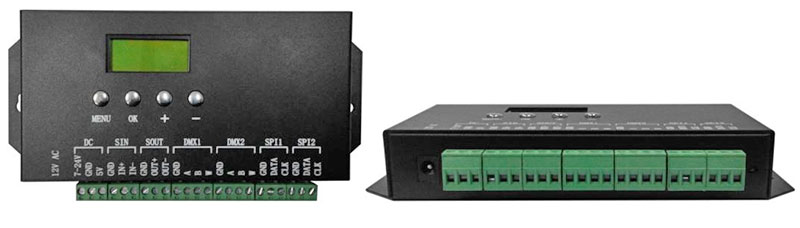

MR502 LED pixel controller front panel with LCD display and keypad
MR502 front panel: LCD status display and keypad for on-device configuration.

Key Specifications

MR502 technical parameters
Model LCL-MR-502 (offline RGB LED controller)
Colour control RGB / RGBW / full colour
Output interface Dual SPI outputs, dual DMX512 ports
Capacity 1,024 pixels per SPI port; 170 RGB pixels per DMX universe
Grayscale 256 – 65,536 levels
Input voltage DC 7.5–24 V
Power consumption 2 W (controller only)
Playback SD card, offline; software: Mr Player
Working temperature −20 °C to +50 °C
Protection rating IP20 — indoor use only
Dimensions 190 × 96.3 × 32.5 mm
Net weight 0.6 kg

How Many MR502 Units Do You Need?

Count pixels first, then divide by port capacity. One MR502 provides two SPI ports, so a single unit covers up to 2,048 SPI pixels — or two DMX universes, about 340 RGB pixels.

Controller count examples (SPI mode, two ports per unit)
Total SPI pixels SPI ports required MR502 units
1,000 1 1
2,000 2 1
3,000 3 2
5,000 5 3
Don't forget power. The MR502 consumes about 2 W; the LED load needs a separate power supply sized for total pixel current. A controller that is correctly specified but under-powered at the PSU is the most common commissioning failure on pixel projects.

Features

Pixel control

  • 256 to 65,536 grayscale levels for smooth fades and gradients
  • Up to 1,024 pixels on each SPI output
  • Standard and extended DMX512 protocols

Setup and operation

  • Built-in keypad for configuration without a laptop
  • LCD display showing live status
  • Adjustable chip type, ID, brightness and playback speed
  • SD card playback for standalone animations, with no PC on site

Playback and scheduling

  • Programmable playlists with date and time scheduling
  • Sync modes including AC frequency sync and data-line sync
  • Time-based access control is available on request for installations that need it

Compatible LED Driver ICs

The MR502 supports most common serial driver ICs:

MBI6020, MBI6021, MBI6024, MBI6027, MBI6120; TM18xx and TM19xx series; UCS19xx, UCS29xx, UCS39xx, UCS89xx and UCS9812; TLS3001; SM167xx; LPD188x, LPD6803 and LPD8806; WS2801 and WS281x; MY9221 and MY9231; DM412; CX808; P9813; TLC597x; BS08xx and BS09xx; GW62xx.

Before ordering: confirm your exact driver IC and channel order (RGB vs RGBW). Compatibility depends on the chip's data protocol, not just its name — send us the chip model and we will check it against the firmware.

DMX512 Support

The controller supports USITT DMX512/1990 and extended formats including DMX512-AP, SM16511, SM16512, UCS512 series, MY7221 and WS2821. Confirm your console's output format before ordering, since some desks default to Art-Net or sACN rather than physical DMX.

Software and Downloads

  • Download Mr Player — playback and device management
  • Download Simple LED Programming — content creation

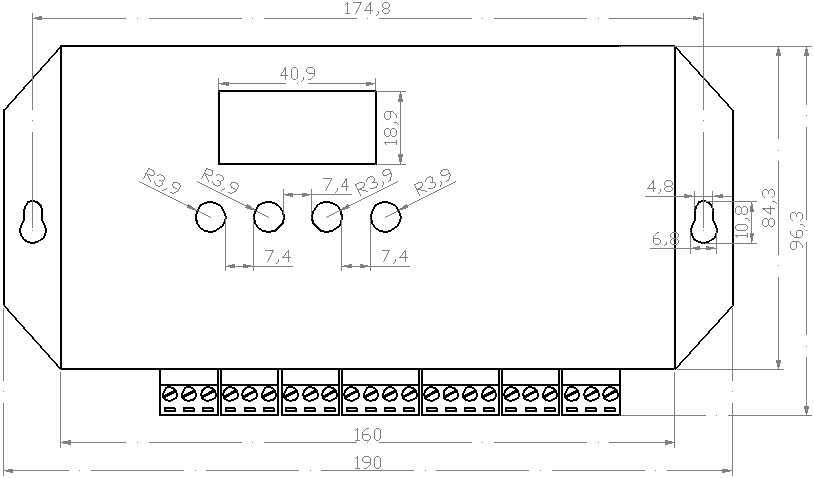

MR502 controller dimension drawing, 190 x 96.3 x 32.5 mm
Dimensions: 190 × 96.3 × 32.5 mm, 0.6 kg net — allow clearance for cable entry and ventilation.

Applications

  • Indoor pixel installations — atriums, ceilings and feature walls
  • Pixel mapping and signage — shaped and irregular layouts
  • Stage and event effects — scheduled playback without an operator
  • Architectural lighting — addressable fixtures inside buildings

The controller is typically paired with our pixel mesh products, such as the P25 flexible LED mesh fabric and the P31.25 mesh cabinet.

Software Interface

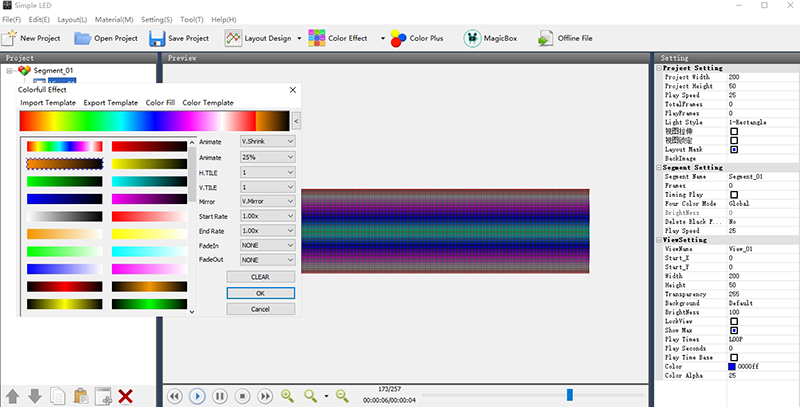

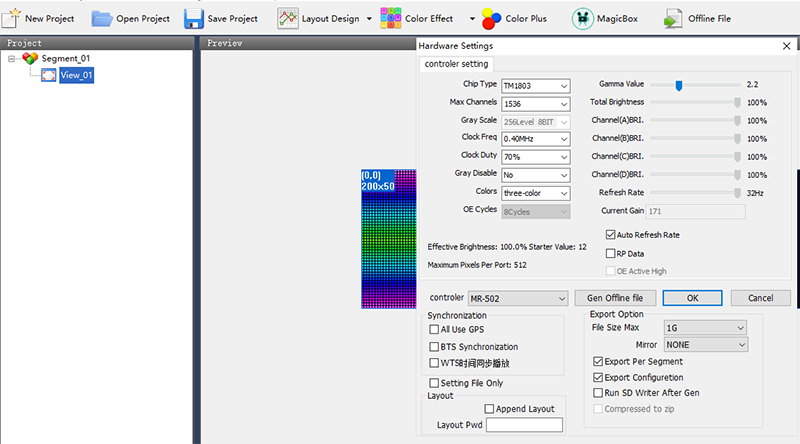

Mr Player software interface for MR502 controller
Mr Player: device and playback management.

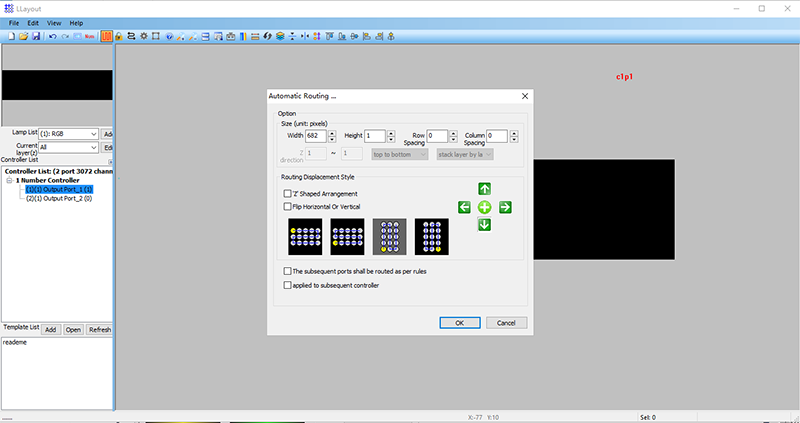

LED controller programming software interface
Programming view for building pixel layouts.
LED control system wiring diagram for MR502
Typical signal and power wiring.

Frequently Asked Questions

Can the MR502 be used outdoors?

No. It is rated IP20 and intended for indoor use. Outdoor installations need a suitable enclosure.

How many pixels can one MR502 control?

Up to 1,024 pixels per SPI port (2,048 across both ports), or 170 RGB pixels per DMX512 universe. The limiting factor is usually the power supply, not the controller.

How do I calculate how many units I need?

Divide total pixels by 1,024 for SPI (then divide by two for dual ports), or by 170 for DMX. Round up and keep spare capacity: 3,000 SPI pixels need three ports, so two MR502 units.

Which LED chips are supported?

Most common serial driver ICs, including WS2811/WS281x, UCS2903, TM1812 and MBI6020. Send us your exact chip model before ordering.

Does it support RGBW pixels?

Yes, RGB and RGBW. Confirm pixel type and channel order when ordering.

Can it run without a computer?

Yes. Load the program onto an SD card and the controller plays it offline, including scheduled playlists. Ask us about the supported card capacity for your program size.

What software do I need?

Mr Player for playback and device management, Simple LED Programming for content creation. Both are linked above.

What power supply does it need?

DC 7.5–24 V for the controller (about 2 W). Pixels require a separate PSU sized for the total load.

Can it be driven from a DMX512 console?

Yes, via either DMX512 port. Check that your console outputs physical DMX512 rather than only network protocols.

Does it support Art-Net or MADRIX?

The published specification does not list Art-Net or MADRIX support. Tell us which control platform you use and we will confirm the correct interface — often an Art-Net-to-DMX node in front of the MR502.

Request a Quote

Send your pixel count, LED chip model, number of outputs and whether playback is from SD card or a DMX console. We will confirm compatibility and the controller count for your layout.

Request a Quote

Specifications are reference values and may change; confirm the current datasheet before ordering. Related: flexible LED mesh · P41.6 mesh cabinet · P25 flying screen.
