P41.6 LED Mesh Screen

Product Item： P41.6
Grayscale:12bit(4096)
IC Type: GS8208
Voltage:DC 12V
Ingress Protection:IP 67

Product description： P41.6 Flexible LED Pixel Mesh Screen for shop front elevation,party and event light rgb background curtain

Description

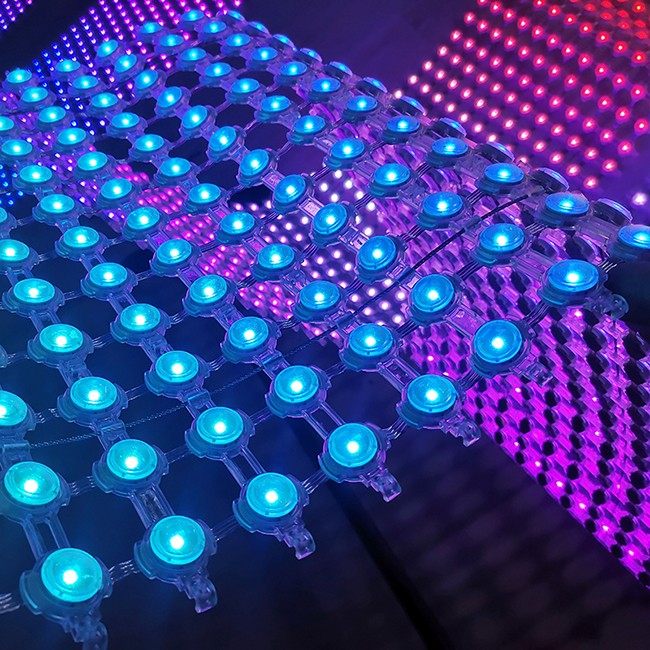

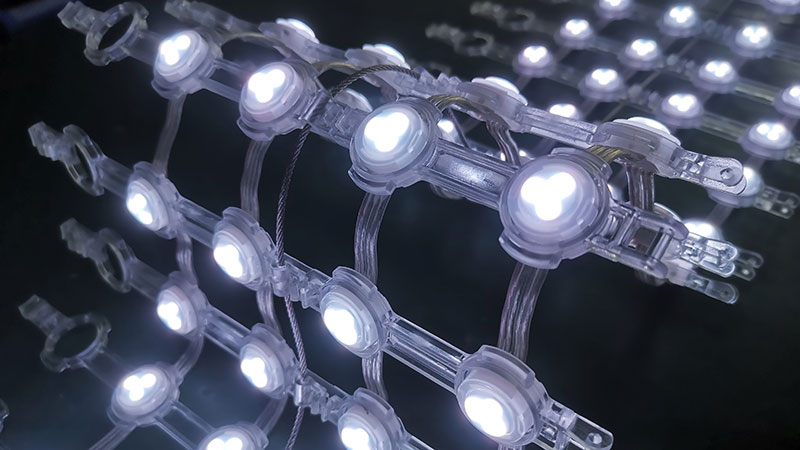

P41.6-Flexible LED Mesh Screen

Experience the ultimate in dynamic LED lighting with our P41.6 Flexible LED Mesh Curtain Display. Designed for versatility and performance, this TM1914 IC 12Bit display offers seamless control via the Novastar Wifi-App, ensuring captivating visuals for events, stages, and architectural displays. With roll-able media illuminated curtain walls, transport and installation are a breeze. Elevate your visual experiences to new heights with our innovative LED display solution.

outdoor led mesh display

transparent led mesh

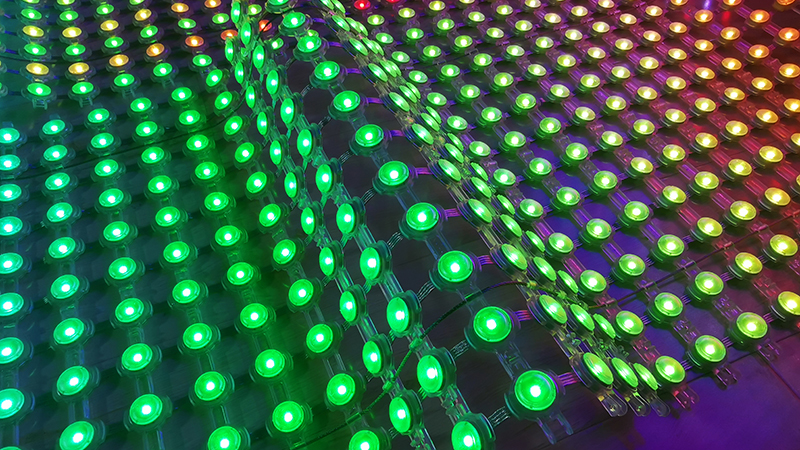

The mesh flexible design supports various shapes, including curves, arches, and custom forms.

High transparency allows light and effects to pass through, creating stunning visuals.

Tool-free connections enable quick setup and removal of large screens.

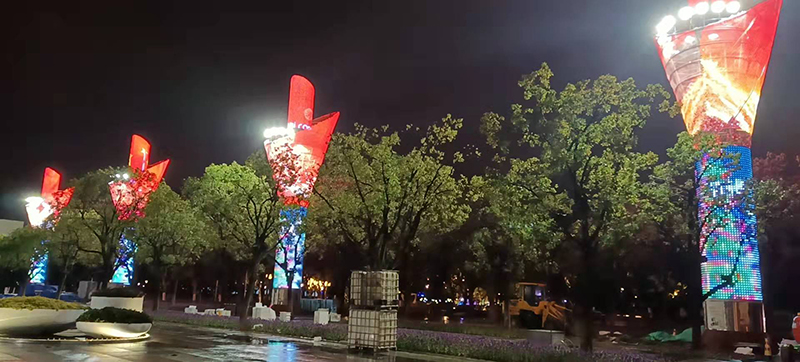

16 bit color Resolution, 3840hz, 4800nits Brightness, ideal for building facade lighting, nightclub ceiling decoration, shop front elevation display, video wall, party and event curtain light.

Technical Specification

LED Mesh Screen
Model	P41.6-WGP-1	P41.6-WGP-2	P41.6-WGP-3
LEDs/Pixel	SMD3535*1	SMD3535*2	SMD3535*3
Pixel Density	576
Horizontal pitch	41.6mm
Vertical pitch	41.6mm
Grayscale	16 bit (65,536)
Brightness	2500 nits	3500 nits	4800 nits
Contrast	1:1200	1:1200	1:2000
Horizontal viewing angle	140°
Vertical viewing angle	140°
Scan	Static
Maximum power consumption	160W	340W	460W
Average power consumption	70W	180W	240W
Unit weight	4.5kg	4.8kg	5.1 kg
Refresh frequency	3840 HZ	3840 HZ	3840 HZ
Power supply voltage	DC12/15V	DC 12V	DC 12V
Life span	≥80000H
Transparency	45%	45%	45%
Ingress protection	IP67
Housing&Base Material	PC
Housing&Base Material	PC
Housing Color	Clear/Black

Control by Novastar

The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) distribution and management.
