Description

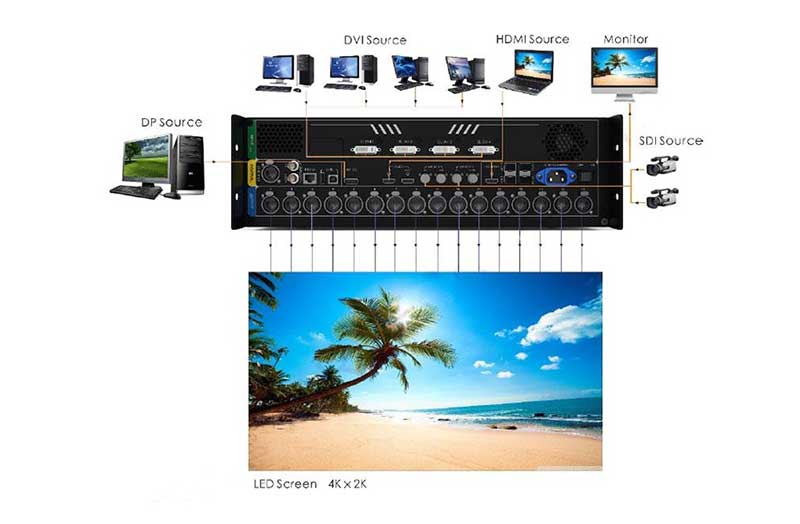

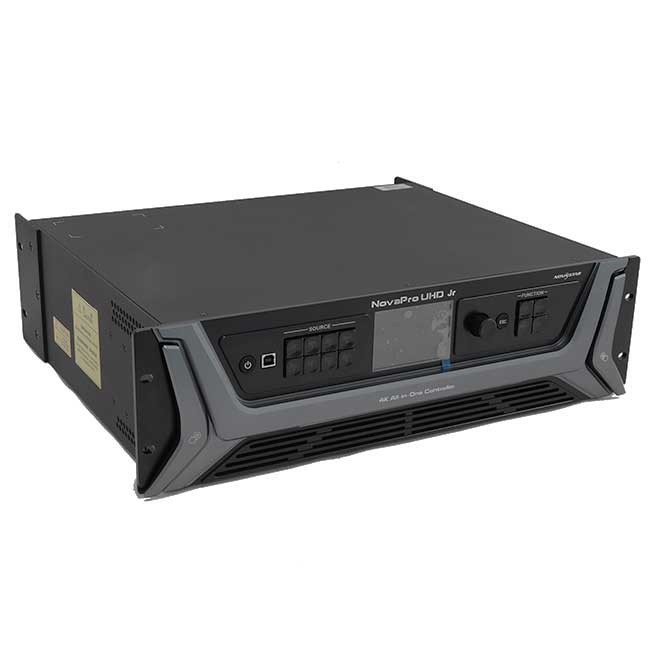

The NovaPro UHD Jr is an all-in-one professional 4K LED video screen controller from NovaStar that integrates video processing with sending card functions. It features multiple input connectors, supporting up to 8 inputs simultaneously, and multiple output connectors, including 16 Ethernet ports and 4 optical fiber ports. The product can be widely used for applications such as stage control systems, conference sites, and exhibition sites.
Key Features:

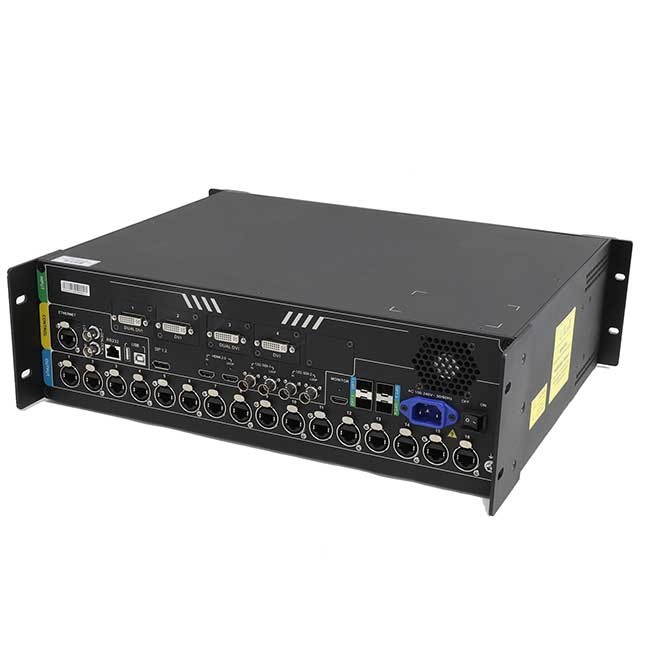

- Various inputs and outputs, including DP 1.2, DVI, HDMI 2.0, and 12G-SDI with loop output
- More output connectors, larger loading capacity up to 8,300,000 pixels
- DVI mosaic that can combine up to 4 DVI input sources
- HDR output for clearer and more vivid images
- 3D image output
- Decimal refresh rate
- Low-latency output with zero frame latency from device to receiving card
- Customized BKG settings for pure color and image backgrounds
- Personalized image scaling with 3 modes: auto fit, pixel to pixel, and custom
- Capture function to use input source image as a background
- Cascading supported for up to 4 devices to load a super-large screen
- V-Can smart control software supported
- 10 presets that can be created and saved as templates
- EDID management supported with custom and standard EDID options
Specifications:
- Power connector: AC 100 V–240 V 50/60 Hz
- Operating temperature: -10°C–50°C
- Storage temperature: -30°C-70°C
- Operating humidity: 0%RH-80%RH
- Dimensions: 3U standard chassis 482.6 × 396.0 × 139.0 (mm)
- Max power consumption: 70 W
- Weight: 6.3 kg
