P83 LED Mesh

Product Item： P83
LED:SMD2222
16bit/65536
Voltage:DC 5-12V
Ingress Protection:IP 67

Product description： P83 LED Mesh Vision Screen is Suitable for both conventional lighting effects and streaming media, this lightweight and easy-to-install mesh is practical for both indoor and outdoor applications.programmable led grid screen mesh lights.

Description

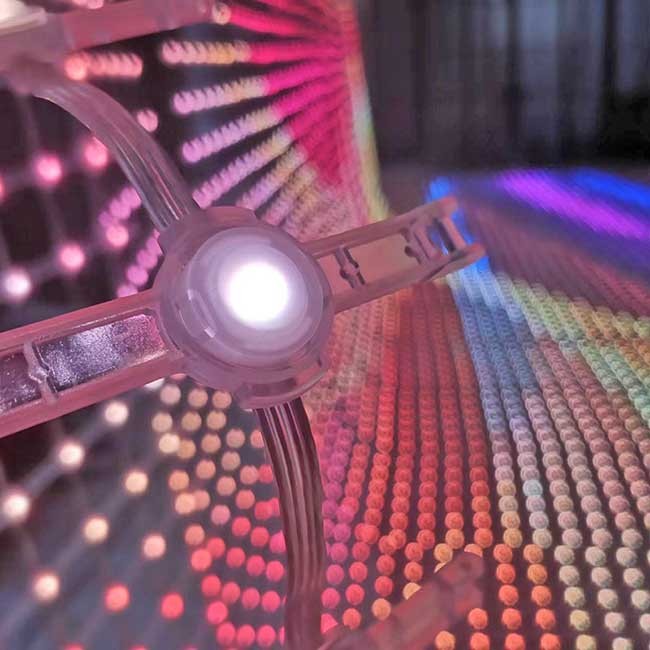

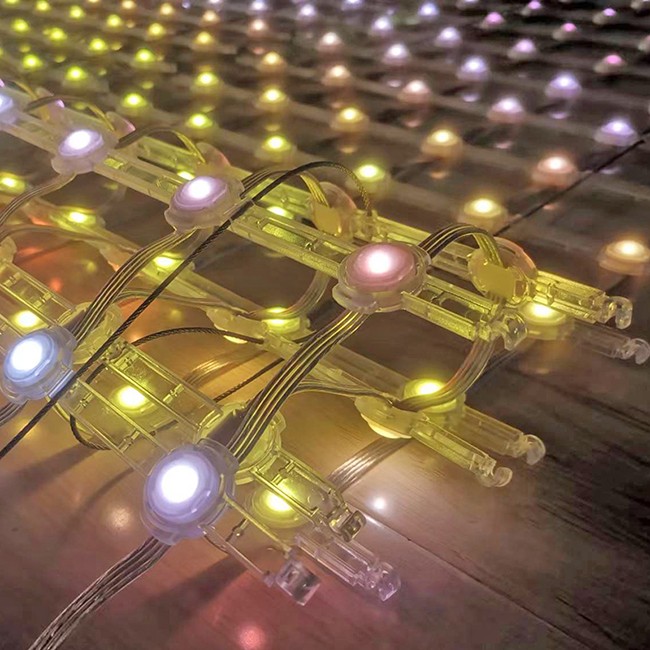

P83 LED Mesh Vision Screen

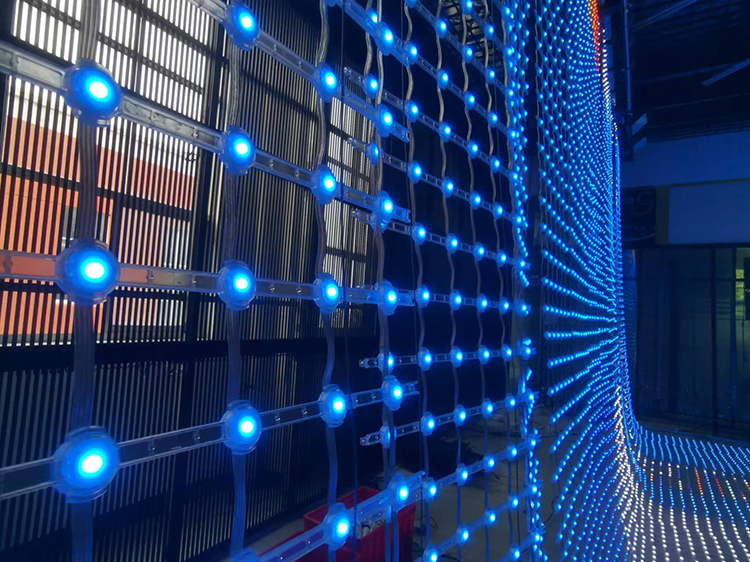

This LED mesh light curtain is ideal for creating a synchronized show for mobile DJs, bands, clubs, and stage backdrops. The P83 LED Mesh Screen is lightweight and easy to install, making it practical for both indoor and outdoor use for conventional lighting effects and streaming media. It can be used for a variety of purposes, including festival and event light shows, outdoor concert stage backdrops, flashy background lights, and building facade displays with an LED grid screen.

The mesh flexible design supports various shapes, including curves, arches, and custom forms.

High transparency allows light and effects to pass through, creating stunning visuals.

Tool-free connections enable quick setup and removal of large screens.

16 bit color Resolution, 3840hz, 800nits Brightness, ideal for large scale led display, like building facade lighting, nightclub ceiling decoration, shop front elevation display, video wall, party and event curtain light.

Technical Specification

P50 LED Mesh Screen
Item	Data	Data
Product model	P83	P100
Pixel	SMD 2222 (gold wire) *1pcs	SMD 2222 *1pcs
Pixel Density	144 dot/㎡	100 dot/㎡
Pitch	83.3mm	100mm
Drive IC characteristics	Break Point Resume
Color level	16bit/65536 levels
Screen brightness	800cd/㎡	600cd/㎡
Contrast	‘1：900	’1：800
Beam angle(H*V)	140° *140°
Best viewing distance	50-300m
Maximum power	25W	20W
Average power	20W	15W
Product weight	2.8kg	1.9kg
Refresh frequency	3840 Hz
Power supply voltage	DC5-12V	DC5-12V
Drive current	Constant current (gain)
Service life	≥80000H
Transmittance	80%
Waterproof grade	IP66
Product material	PC

Control by Novastar

The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) distribution and management.
