Description
P55 LED Mesh Screen Outdoor – Lightweight, High-Transparency Media Mesh Curtain
A versatile, lightweight, and weatherproof mesh LED Curtain designed for events, architectural facades, concert stages, and creative installations.
Key Features

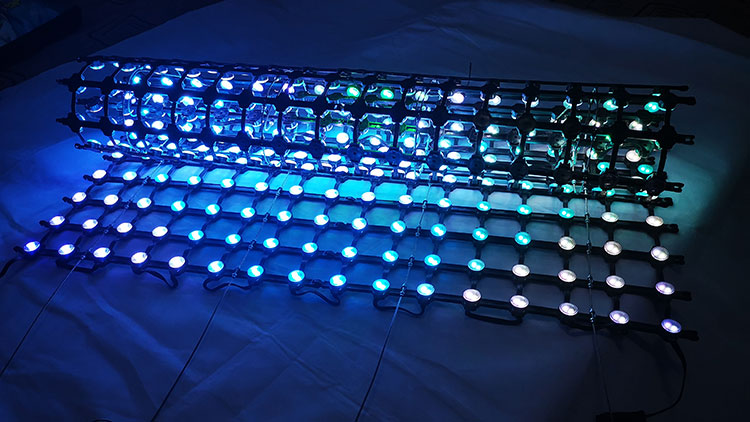

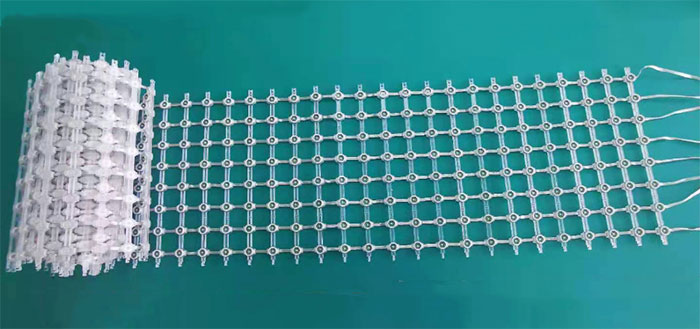

Ultra-Flexible & Rollable The P55 mesh curtain can be bent, rolled, or folded for curved and irregular installations.High Transparency Transparency ranges between 45% and 75%, allowing natural light to pass through while preserving architectural aesthetics.Weather-Resistant & Durable Rated IP67 for outdoor environments, resistant to rain, dust, and harsh weather conditions. Bright & Efficient Display Equipped with SMD3535 LEDs, 16-bit grayscale, and 3840Hz refresh rate for smooth, vivid visuals. Easy to Install & TransportTool-free connections, modular design, and lightweight construction allow fast setup and convenient mobility.
Typical Applications
- Media Facades on buildings
- Stage backdrops for DJs and concerts
- Event decoration & festival lighting
- Club and architectural lighting design
- Transparent advertising screens
Technical Specification
| P55 LED Mesh Screen | |||
|---|---|---|---|
| Item | Data | ||
| Model | P41.6 | P50 | P100 |
| LED Type | SMD2222*1pcs | ||
| Pixel Density | 576 dot/㎡ | 400 dot/㎡ | 100 dot/㎡ |
| Horizontal Pitch | 41.6 mm | 50 mm | 100 mm |
| Vertical Pitch | 41.6 mm | 50 mm | 100 mm |
| Gray scale | 16 bit (65536) | ||
| Brightness | 4800cd/㎡ | 3200 cd/㎡ | 800cd/㎡ |
| Contrast | 1:1200 | 1:1000 | 1:800 |
| Horizontal Angle | 140° | ||
| Vertical Angle | 140° | ||
| Recommend View Distance | 30-300m | ||
| Max. Power Consumption | 145 W | 100 W | 25 W |
| Avg. Power Consumption | 65W | 60 W | 15 W |
| Weight per SQM | 4.5 kg | 3.2 kg | 2.3 kg |
| Refresh | 3840HZ | ||
| Drive Voltage | DC12V | ||
| Design Life Span | ≥80000H | ||
| Transparency | 45% | 60% | 75% |
| Ingress Protection | IP67 | ||
| Housing Material | PC | ||
| Protocol | SPI/TTL | ||

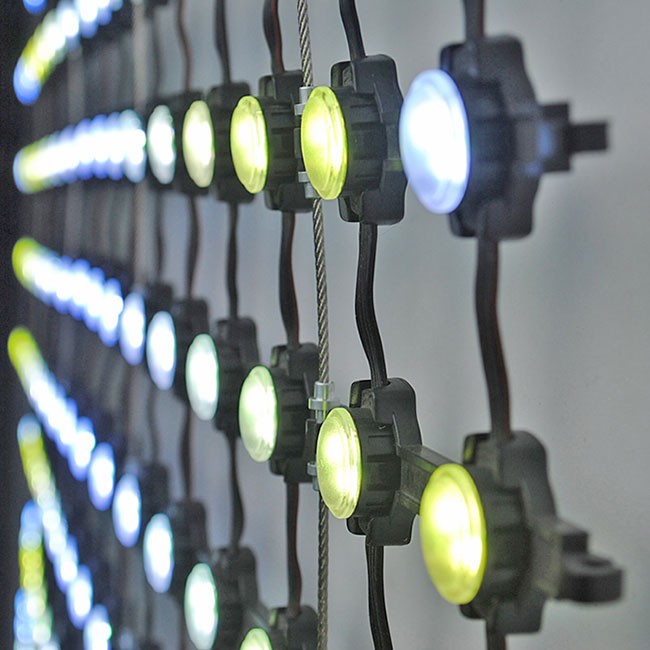

Flexible design supports curves, arches, and custom forms.
High transparency allows stunning visuals and light effects.

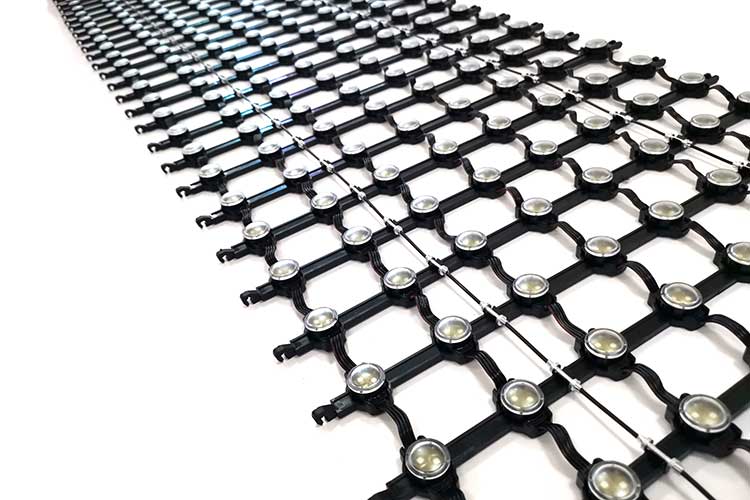

Tool-free connections enable quick setup for large screens.
12-bit Color Resolution, 3840Hz Refresh Rate, 4800 nits Brightness – Ideal for building Media Facade, nightclub decoration, shop displays, LED video walls, and events.

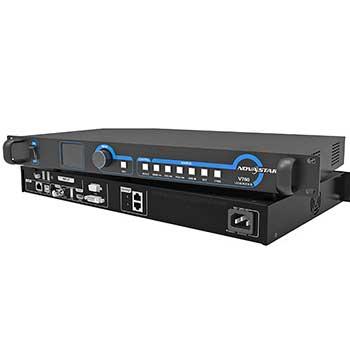

Control by Novastar
The LED mesh system supports USB, HDMI, and wireless control (smartphone, PC). Compatible with Novastar systems used worldwide.
800/1200 Watt PSU + 32/64 Universe Sub-controller (Prebuilt Novastar Receiving Card)
