Cortina LED Transparente P25 Exterior
Adecuado tanto para efectos de iluminación convencionales como para medios de transmisión, esta malla liviana y fácil de instalar es práctica para aplicaciones tanto en interiores como en exteriores.
Especificación técnica
| Application | Outdoor | Unit weight | 5.8 kg |
| LEDs/Pixel | SMD3535*1 | Refresh frequency | 3840 HZ |
| Pixel Density | 1600 | Power supply voltage | DC12/15V |
| Horizontal pitch | 25mm | Life span | ≥80000H |
| Vertical pitch | 25mm | Transparency | 45% |
| Grayscale | 12bit (4096) | Ingress protection | IP67 |
| Brightness | 6200 nits | Housing&Base Material | PC |
| Contrast | 1:2000 | ||
| Horizontal viewing angle | 130° | Housing Color | Transparent/Black |
| Vertical viewing angle | 130° | Maximum power consumption | 130 W |
| Scan | Static | Average power consumption | 400 W |

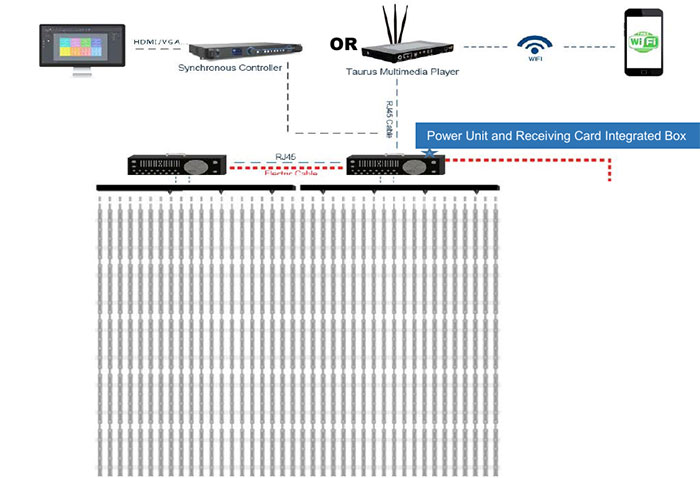

Control System Layout
