Descripción

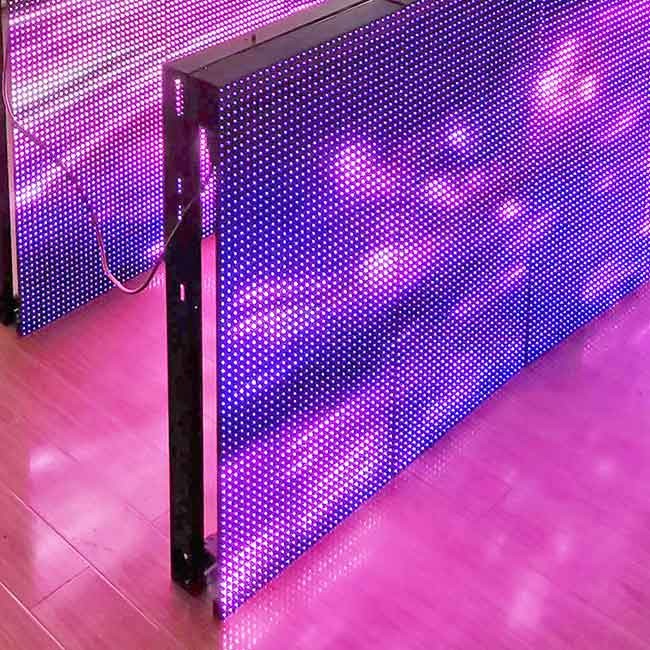

P15.625 Cabina de Fachada Multimedia LED Gráfica
| LED Type | SMD 3535 (1R1G1B) | Pixel per m2 | 64x64 PX |
| Pixel Pitch(H/V) | 15.625mm | Cabinet Size | 1000x1000x120 mm |
| Grayscale | 16 bit | Brightness | >7500 nits |
| Refresh Frequency | 3840 hz | IC Type | ICN2038s |
| View Angle | H 140° V 140° | Temperature | -40~80℃ |
| Transparency | 65% | Suggest View Distance | ≥ 15-500 m |
| Max. Power Consumption | 550 w/m² | Avg. Power Consumption | 160 w/m² |
| Cabinet Material | Aluminum alloy | Connection | signal&power one cable |
| Power Supply | 100-240V | Drive Voltage | 12 v/dc |
| Control System | Novastar | LED Brand | Epistar/Nationstar |
| Unit Weight | 14 kg/m² | Fixing Direction | Vertical |
| Maintance | Front or Rear | Ingress Protection | IP67 |
| Warranty | 3 years | Permissible humidity | 10..90% |
